Ireland Automatic Filling Valve

 Ireland Automatic Filling Valve
  • Model Number: JD-BSF
  • Brand Name: JD
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1000
  • Supply Capacity: 100000/month
  • Payment: T/T, D/P, L/C, Paypal, Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

JD-BSF Ireland Automatic Filling Valve Description

Motorized valve

Thermostatic mixing valve

Water pressure regulator


Automatic boiler fill valve


Floor heating manifold


Brass boiler valve set


Brass radiator valve


Brass safety valve


Balancing valve with flow meter


Other

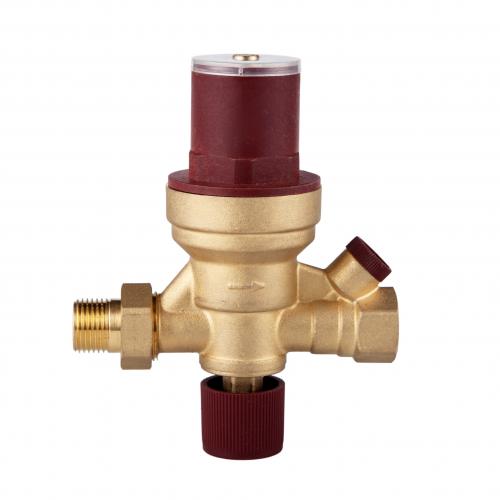

Automatic Filling Valve

The automatic filling valve is a device consisting of a pressure reducing
valve with compensating seat, visual system pressure setting indicator,
an inlet fi lter, anti-scale internal parts, a shut-off valve (round knob on
bottom) and a check valve.
It is installed on the water inlet piping in sealed heating systems, and its
main function is to maintain the pressure of the system at a set value,
automatically fi lling up with water as required.
The valve is pre-adjustable, meaning it can be set to the desired
pressure value before the system charging phase.
After installation, during the fi lling or topping-off phase, the water feed
will stop when the set pressure is reached. This valve fi lls 50% faster
than other valves.


Max.inlet pressure 12bar
Setting range 0.2 - 4 bar
Factory setting 3 bar
Pressure gauge range 0-6bar
Medium Water
CERTIFICATE CE
Size 1/2"M*1/2''F
