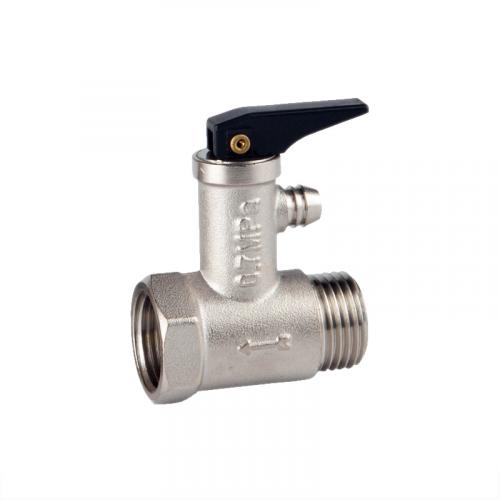

1/2 Inch Water Heater Brass Safety Valve
- Model Number: JD-AQF002
- Brand Name: JD
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 1000
- Supply Capacity: 100000/month
- Payment: T/T, D/P, L/C, Paypal, Western Union。
- MemberShip: Free Member
- Inquiry Now
JD-AQF002 1/2 Inch Water Heater Brass Safety Valve Description
Working pressure: 3-12 Bar;
Relief Pressure: 7 Bar, 8Bar & 10 Bar can be optional as requested; the maximum tolerance of the relief pressure is within 0.5Bar;
Working medium: Water. Mainly for domestic using water heating tank;
Working temperature: 0-110℃;
Safety anti-water back flow function to guarantee the properly working of the water heating tank;
Water flow inlet pressure: 1 Bar; water flow anti-back pressure: 3 Bar;
High quality stainless steel spring guarantees the better working performance and also the long using life;
Locking handle design to avoild the improperly operation;
Thread: M*F according to ISO228(BS2779) standard;
Nickle plated surface makes nice-looking and also anti-corrosion, laser marking relief pressure and date on the body.
Port Size | 1/2", 3/4" |
---|---|
Safety Valve | Automatic Relief |
Surface | Nickel Plated |
Pressure | Low Pressure |
Application | General, Water Heater |
