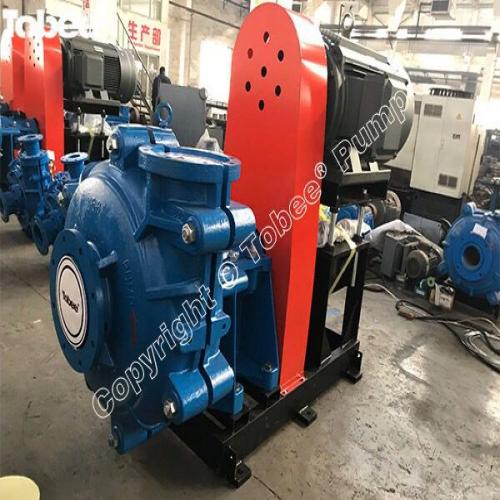

8/6 AH warman similar slurry pumps and spares

8/6 AH warman similar slurry pumps and spares
  • Model Number: AH HH M L
  • Brand Name: Tobee
  • Place of Origin: Hebei, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 100000/month
  • Payment: 100T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

AH HH M L 8/6 AH warman similar slurry pumps and spares Description

• Horizontal,Cantilevered,Centrifugal,Single stage slurry pump design.
• Bearing assembly - A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
• Casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
• Impeller - Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and moulded elastomer impellers are completely interchangeable.
• Liners - Easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance. Hard metal liners are completely interchangeable with pressure moulded elastomer
• Throatbush - Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
• Shaft seal - Packing seal,Centrifugal seal,Mechanical seal;
• Driving type - Flexible coupling,V-belt with pulleys,Gearbox,VFD,SCR control etc.
• The discharge branch can be oriented to any eight positions at the interval of 45 degrees;
• Easy to install and maintain in on-site application.
