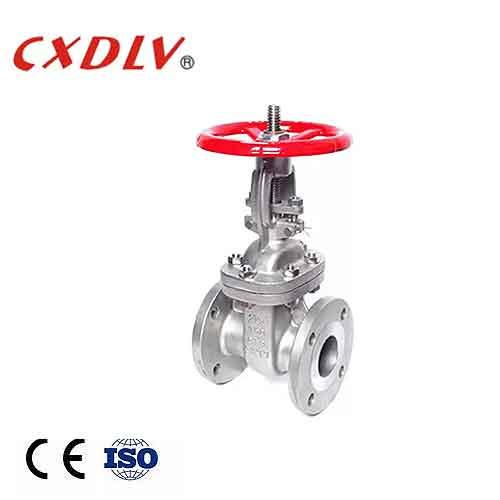

ANSI Flexible Wedge Gate Valve Double Flange End Isolation 150 Class
- Model Number: Z41W
- Brand Name: CXDLV
- Place of Origin: Zhejiang, China
- Minimum Order Quantity: 1
- Supply Capacity: 500Pcs/Mon/month
- Payment: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
- MemberShip: Free Member
- Inquiry Now
Z41W ANSI Flexible Wedge Gate Valve Double Flange End Isolation 150 Class Description
The gate of the gate valve has two sealing faces. The two sealing faces of the most commonly used wedge gate valve form a wedge shape. The wedge angle varies with the valve parameters, usually 5º, and the medium temperature is not as high as 2°52'. The gate of the wedge gate valve can be made into a whole, called a rigid gate; it can also be made into a gate that can produce a small amount of deformation to improve its processability and compensate for the deviation of the sealing surface angle during the machining process. The board is called a resilient shutte
| Body Material | CF8/CF8M/CF3/CF3M/WCB |
|---|---|
| Size | 4"~12" |
| Temperature | High Temperture |
| Structure | Rising Stem |
| Color | Silver |
