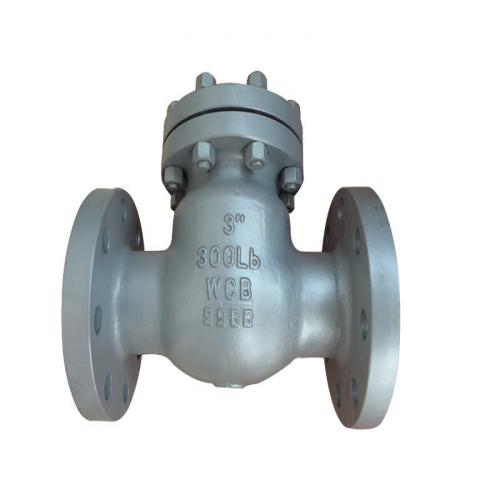

API Swing Check Valve

API Swing Check Valve
  • Model Number: SCV-01
  • Brand Name: Wesdom
  • Place of Origin: Henan, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500/month
  • Payment: T/T, L/C , Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

SCV-01 API Swing Check Valve Description

Adoptive standards:

Name

Material

Body、Bonnet、Disc

A216

A352

A217

A217

A217

A351

A351

A351

A351

Bearing、Yoke

WCB

LCB

WC6

WC9

C5

CF8

CF8

CF3

CF3M

Pin

A182 ;F6

A182 ;F304

A182 ;F316

A182 ;F304L

A182 ;F316L

Bolt

A193-B7、A320-L7、A193-B8

Nut

A194-2H、A194-7、A194-8

Features:

1.The structure length is short, its structure length is only the traditional flange check valve 1/4~1/8.
2.Small size, light weight, its weight is only the traditional flange check valve 1/4~1/20.
3.The valve flap closed fast, water hammer pressure is small.
4.Horizontal pipe or vertical pipe can be used, convenient installation.
5.The flow channel is unobstructed, the fluid resistance is small.
6.Sensitive action, good sealing performance.
7.Short stroke, close the impact force is small.
8.The overall structure is simple and compact, beautiful appearance.
9.Long service life, reliable performance.

Application:

1.Chemical;
2.Pharmaceutical;
3.Chemical fertilizer;
4.Electricity and other pipeline.


Product model H44H-16C/P
Nominal DN DN50-600
Nominal pressure: PN1.0/1.6mpa
Applicable temperature ≤ 425℃
Applicable medium water, oil
Body material cast steel, stainless steel
Connection flange
