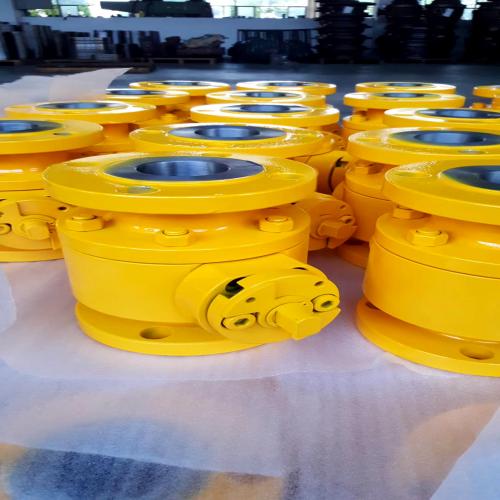

flanged type API6D ball valve Description

Ball valve, API 6D, Full Bore, Reduced bore,Trunnion Mounted Ball,Floating ball type,

Anti-blow out stem, fire safe, anti-static design,Double block&bleed.
Side entry,

Name: Ball Valves.

Type: Full Bore, Reduced bore,2-PC type,3-PC type.

Size: 1/2"-48”.

Pressure Class: CLASS 800LB, 150LB, 300LB,600LB,900LB,1500LB, 2500LB

Body Material: ASTM A216 WCB. Carbon Steel, Stainless Steel, Alloy Steel.duplex stainless steel.B61,B62,copper,WCB,LCB,LCC,WCC,WC5,C5,WC6,WC9,WC11,CF8,CF8M,CF3,CF3M,CD-4MCU,SS2205
 etc.

Ball and Stem Material: ASTM A182 F316.

Ball Type: Solid Bal,Hollow ball

Seat: PTFE,RPTFE,PEEK,PPL,Metel seat.

Working temperature: -46℃ - +200℃.

HS Code: 84818040

Ends: Flanged RF.

Operation: Lever type,Gear Operated.electric actuator, pneumatic actuator,hydraulic actuator etc.

Standard: API 6D.

Flanged according RF – as per AMSE B16.5
Face to face dim. As per ASME B16.10
Painting:Body/Bonnet (silver,grey,dark grey), painting min. 110μm – RAL 9006 or as clinet’s requirements.
Hand lever (blue RAL 5005)as clinet’s requirements.
