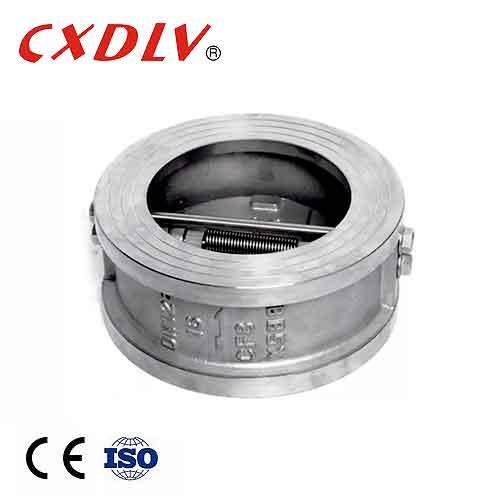

Butterfly Type Dual Plate Wafer Check Valve Stainless Steel For Oil Water Gas

Butterfly Type Dual Plate Wafer Check Valve Stainless Steel For Oil Water Gas
  • Model Number: H76
  • Brand Name: CXDLV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500Pcs/Mon/month
  • Payment: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

H76 Butterfly Type Dual Plate Wafer Check Valve Stainless Steel For Oil Water Gas Description

 Specifications



Design According to AP1594. API6D. JB/T8937
Face to face according to API594. API6D. DIN3202. JB/T8937
Pressure & Temperature Rating according to ASME B16.34
Test & inspection According to ANSI B 16.34. DIN2401. GB/T9124. JB/T74


 Application



        The double-valve check valve is used for pure pipelines and industrial, environmental, water treatment, high-rise building water supply and drainage pipelines to prevent reverse flow of media. The check valve adopts a clip type, the butterfly plate has two semicircles, and the spring is forcibly reset, and the sealing surface can be a body wear welding wear material or a lining rubber, and the utility model has wide application range and reliable sealing.



Check Valves are automatic shut-off valves that are commonly used for preventing backflow or drainage in a pipe system.Often applied on the discharge side of pumps,check valves prevent the system from draining if the pump stops and protects against backflow, which could harm the pump and/or other equipment.


Disc Material CF8/CF8M/CF3/CF3M/WCB
Size DN50-DN600
Body Material CF8
Standard ANSI GB JIS DIN
