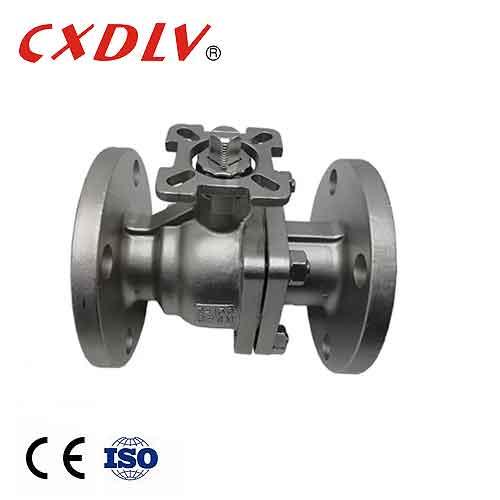

CF3M ANSI150 Stainless Steel Ball Valve 2 Pieces Full Port

CF3M ANSI150 Stainless Steel Ball Valve 2 Pieces Full Port
  • Model Number: Q41F
  • Brand Name: CXDLV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500Pcs/Mon/month
  • Payment: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

Q41F CF3M ANSI150 Stainless Steel Ball Valve 2 Pieces Full Port Description

2 Pieces Full Port Flanged Connection Ball Valve ISO Direct Mount Investment Casting Class 150



 Specifications

Investment Casting Ball Valve

Applicable Standards:
- Design and Manufacturing: ASME B16.34,API608

- Connection:ASME B16.5

- Face to Face Dimension:ASME B16.10

- Test and Inspection: API598,API6D

Size Range:
- 1/2" ~ 8"  DN15 ~ DN200

Pressure Rating:
- ANSI150LB,ANSI300LB
Temperature Range:
- 20 °C ~ 185 °C

 Model Selection

JIS 10K SCS13A Floating Full Port Flanged 2PC Ball Valve Within Solid Ball

  StandardASME  PressureAPI598  Matreial1) CF8/SS304     2) CF8M/SS316    3) CF3/SS304L    4) CF3M/SS316L    5) WCB  Model1) High Platform Model                2) Handle Model
