Wenzhouxidelong valveco,.Ltd was founded in 2007, main in producing and supplying products like ball valve, check valve, gate valve and so on, our products are selled to Europe, America, Southeast Asia and other markets.

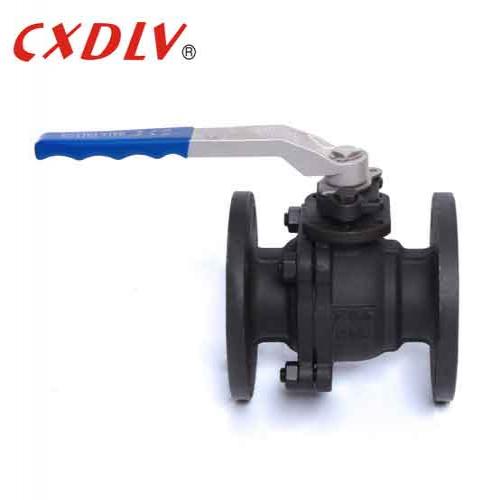

DIN PN16 WCB Flanged Ball Valve 2PC Stainless Steel

DIN PN16 WCB Flanged Ball Valve 2PC Stainless Steel
  • Model Number: Q41F
  • Brand Name: CXDLV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500Pcs/Mon/month
  • Payment: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

Q41F DIN PN16 WCB Flanged Ball Valve 2PC Stainless Steel Description

High Platform Ball Valve

Applicable Standards:
- Design and Manufacturing:GB12237-89

- Connection:JB/T79

- Fireproof Test: API607 4th 1993

- Test and Inspection:GB/T13927-1992

Size Range:
- DN15~DN200

Pressure Rating:
- GB PN16 PN25 PN40
Temperature Range:
- -20°C~185°C

Advantage

1. Small fluid resistance: pneumatic ball valve is the smallest of the fluid resistance of all valve classification, even the reduced diameter pneumatic ball valve, its fluid resistance is quite small.


2. Stem seal is reliable: Since the valve stem only rotates and does not move up and down, the packing seal of the valve stem is not easy to break, and the sealing capacity increases with the increase of the medium pressure.


3. The sealing performance of the valve seat is good: the sealing ring made of elastic material such as PTFE is easy to seal, and the valve sealing ability of the pneumatic ball valve increases with the increase of the medium pressure.


Material SS304/316/WCB
Size DN15-DN200
Temperature -20°C~185°C
Connection Flanged ends
Standard ANSI GB JIS DIN
Power Manual
Media Water Oli Gas
