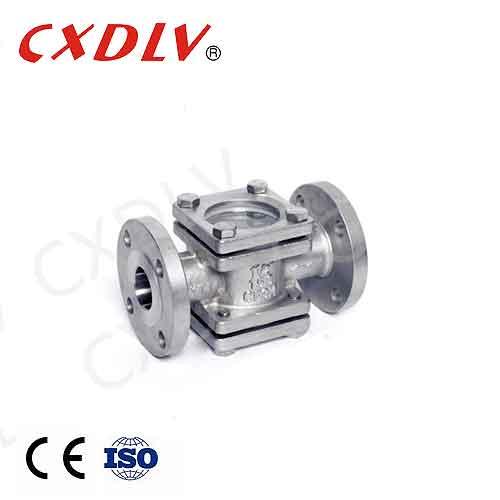

DIN Sight Glass Flow Indicator Double Borosilicate Window Flanged Valve

DIN Sight Glass Flow Indicator Double Borosilicate Window Flanged Valve
  • Model Number: SG-ZT
  • Brand Name: CXDLV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500Pcs/Mon/month
  • Payment: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

SG-ZT DIN Sight Glass Flow Indicator Double Borosilicate Window Flanged Valve Description

sight glass flow indicator DIN Double Borosilicate Window flanged Sight Glass Valve

Product Feature

A Sight Flow Indicator is a device installed into a pipe to provide a visual of verifying liquid flow for direction and accurate flow rate. Sight Flow Indicators allow operators to observe the color and clarity of liquids through a window. A sight flow indicator is a body with one or more viewing windows,usually with gasket,and a way to mount the indicator to the pipeline,such as flanged,threaded connections.Sight flow indicator are available to fit standard pipe ranging from 1/2"~8" and carry ANSI pressure rating.

Double Flange Sight Glass

Applicable Standards:
- Design and Manufacturing: ASTM B16.34

- Flange Connection: ASTI16.5

- Test and Inspection: API598

Size Range:
- 1/2"~8"

Pressure Rating:
- ANSI 300LB
Temperature Range:
- -20°C~185°C



Double Window Sight Glass is a simple assembly of two glasses on single cast or fabricated body at two opposite sides. Use of these types of flow indicator is for spot inspection and view of process parameter.



Salient Features
Easy Maintenance

Available in all most all Material of Construction

Manufactured to the Highest Standard

Durable Construction

Material Test Certificate & Pressure Test Certificates furnished on request.


Material CF8/CF8M/CF3/CF3M/
Glass Borosilicate
Structure Balls Inside
Glasket PTFE
Connection 150LB RF
