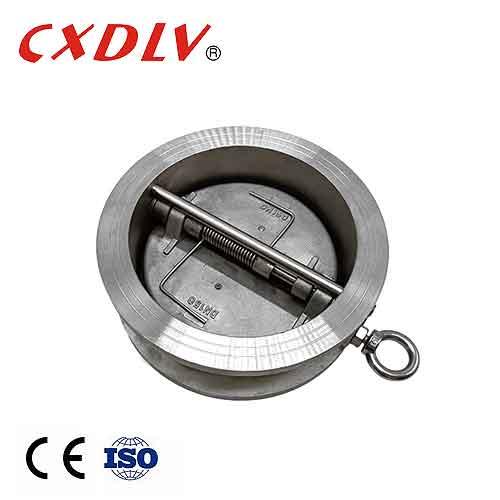

DN150 EPDM Seat Wafer Type Check Valve Dual Plate Pipe Double Disc Door

DN150 EPDM Seat Wafer Type Check Valve Dual Plate Pipe Double Disc Door
  • Model Number: H77x
  • Brand Name: CXDLV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500Pcs/Mon/month
  • Payment: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

H77x DN150 EPDM Seat Wafer Type Check Valve Dual Plate Pipe Double Disc Door Description

Double Disc Door Wafer Type Dual Plate Pipe Check Valve DN150, PN16 EPDM Seat

 Specifications



Design According to AP1594
Face to face according to DIN3202.
Pressure & Temperature Rating according to DIN2526
Test & inspection According to EN12266



 Application



The wafer type check valve is a universal one-way fluid valve. The utility model has the advantages of light weight, small volume and easy to be installed between the flanges. The inside of the valve is composed of two semicircular springs and a plate surface, and is fixed on the valve body by a pin, and the spring is deformed to close the valve plate, and the fluid pressure causes the spring to open. The deformation is fast, which protects the pipe from water hammer damage


Disc Material CF8/CF8M/CF3/CF3M/WCB
Size DN50-DN600
Mpa 1.6Mpa
Body Material CF8
Media Water Oli Gas
