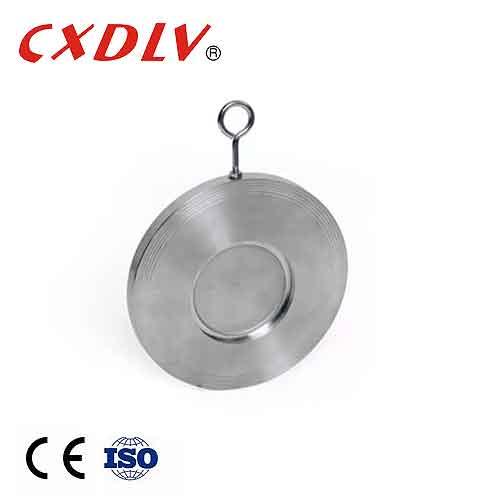

GB / ANSI CF3 Single Door Flap Wafer Check Valve Non Slam Super Duplex

GB / ANSI CF3 Single Door Flap Wafer Check Valve Non Slam Super Duplex
  • Model Number: H74
  • Brand Name: CXDLV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500Pcs/Mon/month
  • Payment: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

H74 GB / ANSI CF3 Single Door Flap Wafer Check Valve Non Slam Super Duplex Description

 Specifications



Applicable Standards:

- FACE TO FACE: AP16D/ANSE B16.10

- FLANGE DIMENSION: ANSI/DIN/JIS/JB

Size Range:
- DN40~DN600

Pressure Rating:
- PN10~PN40
Temperature Range:
- -29°C~180°C



 Application



      H74 type wafer-type check valve is an ultra-thin check valve. Its main function is to prevent backflow of medium. It is an automatic valve that relies on medium pressure to open and close. Applicable to water supply systems, petroleum, chemical, metallurgical and other industrial sectors, applicable to places with installation space restrictions. Wenzhou Xidelong valve pair disc type check valve consists of several parts such as valve body, valve disc and sealing ring. It adopts swing type structure with light weight, simple structure, convenient installation and maintenance, and service life. Long features.


Material SS304/316/WCB
Size DN15-DN200
Temperature -20°C~185°C
Standard ANSI GB JIS DIN
