Wenzhouxidelong valveco,.Ltd was founded in 2007, main in producing and supplying products like ball valve, check valve, gate valve and so on, our products are selled to Europe, America, Southeast Asia and other markets.

Italy Gas Flanged High Platform Ball Valve DN50 PN16 Stainless Steel

Italy Gas Flanged High Platform Ball Valve DN50 PN16 Stainless Steel
  • Model Number: Q41F
  • Brand Name: CXDLV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500Pcs/Mon/month
  • Payment: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

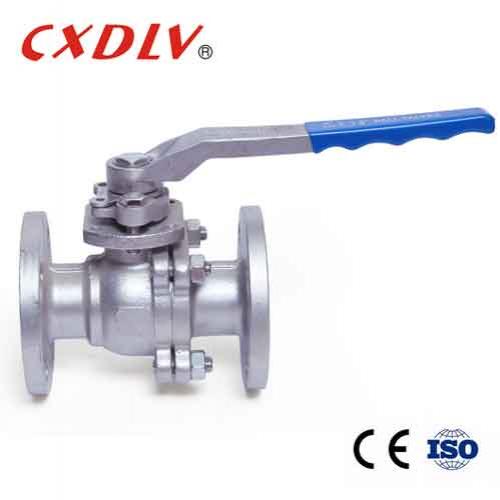

Q41F Italy Gas Flanged High Platform Ball Valve DN50 PN16 Stainless Steel Description

Specifications

Ball Valve

Applicable Standards:
- Design and Manufacturing:GB12237-89

- Connection:JB/T79

- Fireproof Test: API607 4th 1993

- Test and Inspection:GB/T13927-1992

Size Range:
- DN15~DN200

Pressure Rating:
- GB PN16 PN25 PN40
Temperature Range:
- -20°C~185°C



Ball valve, the opening and closing member (sphere) is driven by the valve stem and rotates around the axis of the ball valve. It can also be used for fluid regulation and control. The hard-sealed V-ball valve has a strong shear force between the V-shaped core and the metal seat of the hard-welded carbide alloy. It is especially suitable for fiber-containing, micro-solid particles. Etc. The multi-way ball valve not only can flexibly control the confluence, splitting, and flow direction switching of the medium, but also can close any channel and connect the other two channels.

Material SS304/316/WCB
Size DN15-DN200
Temperature -20°C~185°C
Connection Flanged ends
Standard ANSI GB JIS DIN
Power Manual
