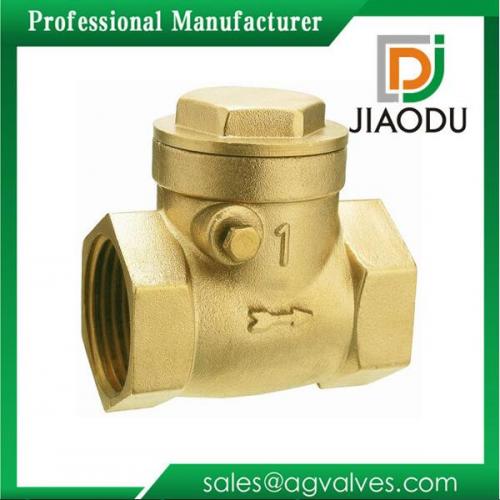

JD-G0264 adjustable female thread brass swing check valve

JD-G0264 adjustable female thread brass swing check valve
  • Model Number: JD-G0264
  • Brand Name: AG
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 3000 Piece
  • Supply Capacity: 100000 Piece/month
  • Payment: L/C,D/A,D/P,T/T,Western Union,MoneyGram
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

JD-G0264 JD-G0264 adjustable female thread brass swing check valve Description

Name: swing check valve

Size: 1/2 inch to 4 inch

Normal pressure: PN1.0MPa~42.0MPa

Applicable temperature: 146~940°C

Material: brass according to customer requirements, the GeneralHPB57-3 HPB58-3 HPB59-3 DZR cw617n CW614N

Surface treatment: brass, nickel plated or chrome

Channel: straight

Fonction: Prevent the backflow medium pipeline. Open-close part by medium flow and power to open or closed, to prevent the backflow medium

Applications: ne-way flow of medium line

Advantages

1, the structure length is short, the structure length is only 1/4 ~ 1/8 of traditional horizontal non-return valve 2, small volume, light weight, the weight is only 1/4 ~ 1/20 of traditional flange check valves.Close the valve flap of

3, fast, small water hammer pressure

4, horizontal or vertical piping all can use, convenient installation

5, smooth flow, fluid resistance is small

6, action quick, sealed performance is good

7 valves closed, short disc stroke and impact is small

8, compact structure, simple, beautiful modelling

9, long service life and high reliability

Material Brass
Pressure High Pressure
Temperature of Media Medium Temperature
Nominal pressure 1.6Mpa
Valve Systems Non-return Valve
