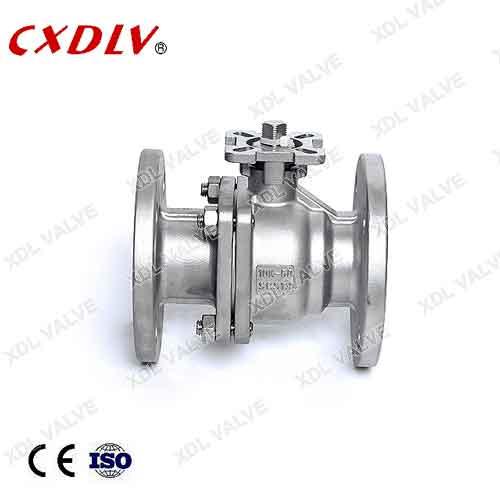

JIS Standard Flange Floating Ball Valve Stainless Steel

JIS Standard Flange Floating Ball Valve Stainless Steel
  • Model Number: Q41F
  • Brand Name: CXDLV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500Pcs/Mon/month
  • Payment: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

Q41F JIS Standard Flange Floating Ball Valve Stainless Steel Description

Ball valves shut off the flow of water using a ball, inside the valve. When in the "on" position, the opening is in line with the pipe, allowing water to flow freely. When in the "off" position, the opening is perpendicular to the flow of water, stopping the flow completely. In a ball valve, flow is controlled with a lever. Placing the lever perpendicular to the pipe allows water to flow. Moving it at 90-degree angle stops the flow.





Specifications

Product NameDN40 High Quality Double Flange Stainless Steel Ball ValveModel NumberFlange End 2PC Ball ValvePressureClass 150 / Class 300 / JIS 10K / JIS 20KSize Range1/2" to 8"Type of PortFull PortWall ThicknessASME B16.34Face To FaceANSI B16.10 / JIS B2002End FlangesANSI B16.5 / JIS B2220MaterialCF8, CF8M, WCB, Cast IronTypeMoungting Pad Flange Ball ValveTemperatureMax. 400°FSeatPTFE / RPTFEMediaWater / Oil / GasConnectionFlange EndHandle sleeveAccording to customer requirementsFeatures

1. INVESTMENT CASTING / SAND CASTING

2. Actuator Mounting Pad

3. Floating Ball

4. Blow-Out Proof System

5. Gear Operation option

6. OEM / ODM Product

Quality InspectionMill Certificate 3.1 and/or other per your requestPressure TestAPI 598CertificationISO, CE, CRN, AD2000, API 607 5th Edition, NACE MR-0175Lead TimeBased on the quantity, sample order availableTermsEX-WORK, FOB, CIF, C&FPaymentT/T, LC Before shipment for first order


Material SS304/316/WCB
Size - 1/2 " ~ 8 "
Connection Flanged ends
Power Manual
