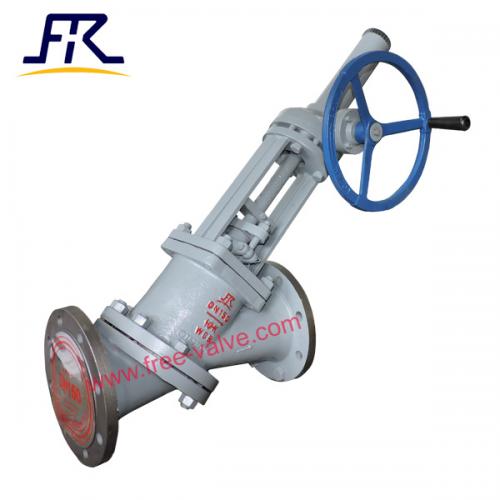

JIS10K Aluminum Oxide slurry Y type Angle Pattern Slurry Valve for alumina slurry Special valve

JIS10K Aluminum Oxide slurry  Y type Angle Pattern Slurry Valve for alumina slurry Special valve
  • Model Number: FRJ545Y
  • Brand Name: FREE-VALVE
  • Place of Origin: Henan, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 200set/month
  • Payment: T/T,L/C,DP
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

FRJ545Y JIS10K Aluminum Oxide slurry Y type Angle Pattern Slurry Valve for alumina slurry Special valve Description

FREE-VALVE’s  JIS10K Aluminum Oxide slurry  Y type Angle Pattern Slurry Valve  is ideal for many applications because the valves are designed for use on abrasion materials.  Split body WCB Body Aluminum oxide Y type slurry valve is divided into left and right parts with a seat between them. The bolt connecting the two parts can be dissembled to replace the valve seat.The valve with abrasion resistance,high pressure resistance,erosion resistance and anti-scabbing performance. Split body WCB Body Aluminum oxide Y type slurry valve is specially offered for controlling or stopping the slurry, the slurry valves are used primarily in the alumina,metallurgy , chemical fertilizer and mining industry.

Features


1. The valve body is split type body,it is divided into left and right parts with a seat between them. The seat is installed between the two valve body ,so the seat can be replaced easily .2. An anti-washing and anti-corrosion protection stem is set  in the cavity of the valve body.3. 2PC FRJ945Y Y type electric control slurry globe valve  has a good abrasion resistance with higher hardness because Full Stellite or Tungsten carbide overlaying seat sealing surface.4. Anti-washing and anti corrosion protection plate is set in the cavity of the valve body .5. A rotation-resistant device is set up to ensure that the valve stem only has straight line motions and no rotation.



Technical Specification:

Flange connection:ASME B16.5,GB/T9113

Design standard:ASME B16.34

Pressure Range:Class150~Class600

Size Range:DN50~DN 600, NPS2~NPS24

Material:carbon steel, stainless steel

Connection type:Flange

Suitable Temperature:≤425℃

Operating Type:Pneumatic, manual, electric

Sealing surface material:Alloy

Pressure test:GB/T13927, API598

Face to Face:GB/T12221, ASME B16.10


Application

Alumina,Metallurgy , Chemical fertilizer , Mining industry, Paper-making


Model:FRJ945Y

Price:100-5000USD/set

Price terms:FOB,CFR,FCA,CIF

Payment terms:TT,LC

Origin:China

Wechat:FreeValve

Email:sales@free-valve.com

Skype:sales@free-valve.com

www.free-valve.com


Flange connection ASME B16.5,GB/T911
Design standard ASME B16.34
Pressure Range Class150~Class600
Size Range DN50~DN 600
Material carbon steel, stainless steel
Connection Flange
Suitable temperature ≤425℃
Operating Type Pneumatic, manual, electric
