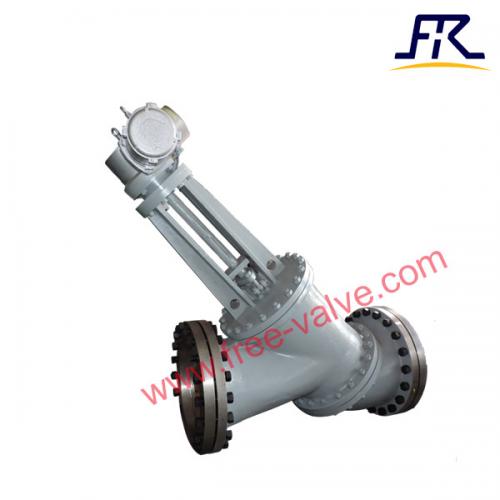

JIS10K Aluminum Oxide slurry Y type Angle Pattern Slurry Valve for alumina slurry Special valve

Model Number: FRJ545Y
Brand Name: FREE-VALVE
Place of Origin: Henan, China
Minimum Order Quantity: 1
Supply Capacity: 200set/month
Payment: T/T,L/C,DP
MemberShip: Free Member
Inquiry Now
Bookmark & Share:

FRJ545Y JIS10K Aluminum Oxide slurry Y type Angle Pattern Slurry Valve for alumina slurry Special valve Description

FREE-VALVE’s JIS10K Aluminum Oxide slurry Y type Angle Pattern Slurry Valve is ideal for many applications because the valves are designed for use on abrasion materials. Split body WCB Body Aluminum oxide Y type slurry valve is divided into left and right parts with a seat between them. The bolt connecting the two parts can be dissembled to replace the valve seat.The valve with abrasion resistance,high pressure resistance,erosion resistance and anti-scabbing performance. Split body WCB Body Aluminum oxide Y type slurry valve is specially offered for controlling or stopping the slurry, the slurry valves are used primarily in the alumina,metallurgy , chemical fertilizer and mining industry.

Features

1. The valve body is split type body,it is divided into left and right parts with a seat between them. The seat is installed between the two valve body ,so the seat can be replaced easily .2. An anti-washing and anti-corrosion protection stem is set in the cavity of the valve body.3. 2PC FRJ945Y Y type electric control slurry globe valve has a good abrasion resistance with higher hardness because Full Stellite or Tungsten carbide overlaying seat sealing surface.4. Anti-washing and anti corrosion protection plate is set in the cavity of the valve body .5. A rotation-resistant device is set up to ensure that the valve stem only has straight line motions and no rotation.

Technical Specification:

Flange connection:ASME B16.5,GB/T9113

Design standard:ASME B16.34

Pressure Range:Class150~Class600

Size Range:DN50~DN 600, NPS2~NPS24

Material:carbon steel, stainless steel

Connection type:Flange

Suitable Temperature:≤425℃

Operating Type:Pneumatic, manual, electric

Sealing surface material:Alloy

Pressure test:GB/T13927, API598

Face to Face:GB/T12221, ASME B16.10
