Zhengzhou Free Fluid Control Technology Co.,Ltd was founded in 2008, main in producing and supplying products like ceramic gate valve, ceramic ball valve, slurry valve and so on, our products are selled to Asia, Africa, Middle east and other markets.

home » Supplier's HomePage » ceramic valves » Product details

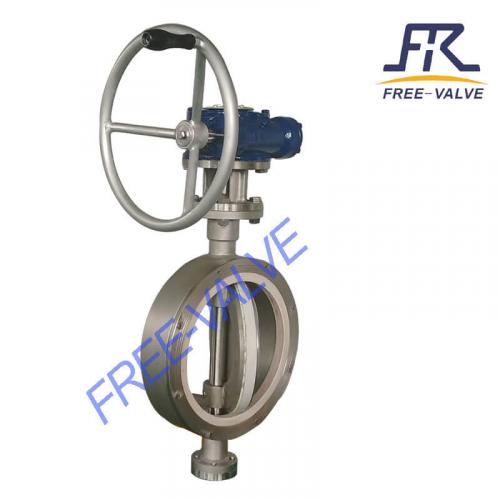

Manual Ceramic Butterfly Valve

Manual Ceramic Butterfly Valve
  • Model Number: FRD642TC
  • Brand Name: FREE-VALVE
  • Place of Origin: Henan, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 200pieces/month
  • Payment: T/T, L/C
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

FRD642TC Manual Ceramic Butterfly Valve Description

FREE-Valve's manual wafer type ceramic butterfly valves were operated in the harshest control environments and offers excellent resistant to cavitation which is major problem for process control valves. The ceramic materials are applied to the most common problem areas within disc of butterfly valve.These ceramic materials are 6-8 times harder than stainless steels and the result is a control valve that functions properly in a harsh, abrasive service environment.

Features

1. Wafer type ceramic butterfly valves are light and easy to install.

2. The disc sealing ring and seat are both high performance ceramics. High pure 99% Alumina, Zirconia and solid Tungsten carbide are used for wafer type ceramic butterfly valves. Different ceramics materials are suitable for different applications.

3. Body materials are selected on different applications.

4. Ceramics are nearly universally chemical resistant.

5. Much longer service life than any other common butterfly valves, and save maintenance cost for customers,due to high hardness and excellent corrosion resistance of high performance ceramics.

6. It has the inherent characteristic of the adjustable performance of butterfly valve.



Application

FREE-VALVE's manual wafer type ceramic butterfly valves are suitable for all types of abrasive slurry including bauxite, Mining slag,Coal washing ,Ash Slurry, Ash,Grain,Quartz Sand,Metallurgical dust,etc



Price terms:FOB,CIF,FCA,CFR

Price:500-5000USD/set

Payment terms:TT,LC

Origin:China

Delivery time:30 days

Model:FRD342TC

Brand:FREE-VALVE

Wechat ID:FreeValve


Size Range NPS2~NPS12,DN100~DN300
Pressure Range PN6-PN25
Applicable Temperature 0~200℃
Connection Type Flange,wafer
Sealing material Engineering ceramics
Body material WCB,CF8,CF8M,CF3,CF3M
Pressure test GB/T13927, API598
Face to Face GB/T12221, ASME B16.10
