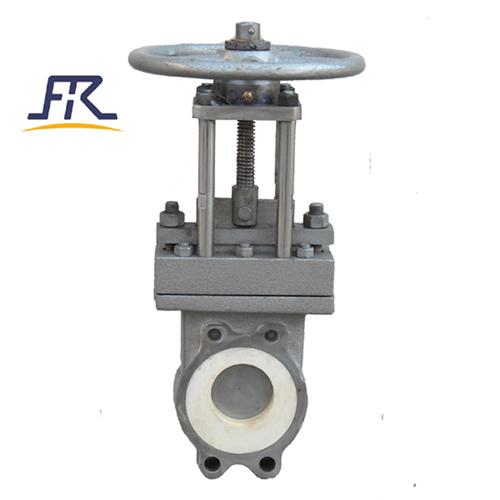

Manual Ceramic Knife Gate Valve

Manual Ceramic Knife Gate Valve
  • Model Number: Ceramic Knife Gate Valve
  • Brand Name: FREE-VALVE
  • Place of Origin: Henan, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 200pieces/month/month
  • Payment: T/T,L/C
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

Ceramic Knife Gate Valve Manual Ceramic Knife Gate Valve Description

FREE-Valve's Ceramic Knife Gate Valves are known as slurry gate valves. Its have simple structure and can cut off medium which contains solid particles and fibers, but for some very hard particles or serious erosive mediums, general metal seated knife gate valves will be washed out easily, so ceramic knife gate valves are very suitable for those mediums containing  fibers and hard solid particles.


Features:

1) Short  length of structure,saving material ,lightweight ,easy to install,small space occupation.

2) Seat is designed with single seat type to prevent sticking and accumulation of ash residue.

3) The sealing surface is made of structure ceramic with abrasion resistance and long service life.


Technical Specification:

1) Size Range: NPS2~NPS24,DN50~DN600

2) Pressure Range: Class 150 /PN6 /PN10

3) Applicable Temperature.: 0~200℃

4) Connection Type: Flange , wafer

5) Sealing material: engineering ceramics

6) Body Material: WCB, CF8, CF8M, CF3M

7) Pressure test:GB/T13927, API598

8) Face to Face: GB/T12221, API609

9) Valve body : GB/T12224,ASME B16.34

Operating Mode: Manual


Application:

FREE-Valve's Ceramic Knife Gate Valves are suitable for the conveying system with liquid-solid or gas -solid two-phrase medium , such as ash, mine residue and coal residue in iron and steel plant or ash conveying system of power plant , paper pulp in paper industry, sewage and slurry  in decontamination plant ,especially useful for the heavy medium system of coal mill.


Size Range NPS2~NPS24,DN50~DN600
Model FRZ73TC
Price terms FOB,CIF,FCA
Origin China
