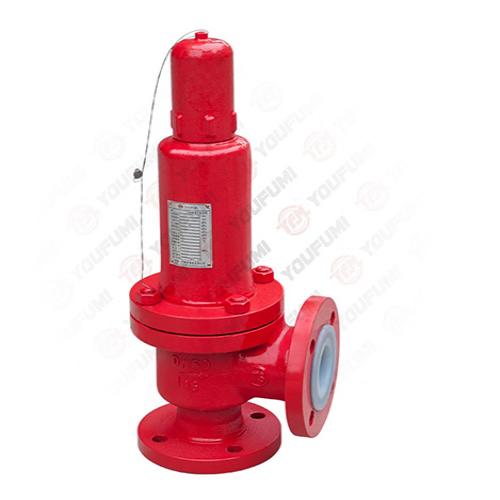

PFA Lined RF Flanged Safety Valve

PFA Lined RF Flanged Safety Valve
  • Model Number: A41F46
  • Brand Name: YFM
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 10000/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

A41F46 PFA Lined RF Flanged Safety Valve Description

Lined safety valve is  developed according to use the domestic and foreign advanced technology. This valve is used in the chlor-alkali chemical industry, hydrochloric acid, sulfuric acid and other high-risk corrosive medium, protects system security on the pressure equipment and pressure container. The valve uses PTFE bellows seal that has anti-leakage function. Inner cavity of the valve body is fully PFA or F46 lined more than 2.5 mm thickness.

All components of YFM safety valves are made with
PTFE-lined materials, including the permanently medium wet-
ted inlet area composed of a nozzle and a disc, the additional
protection of the bonnet area by means of a bellows and all
components of the inlet and outlet areas.
• Designed and manufactured according to the highest stan-
dards
• Reach their full lift within a pressure increase of 10% above
the set pressure
• Are characterised by longstanding proof in service.
• Are developed and optimised in close cooperation with plant
engineers and service specialists to protect processes with
highly corrosive and toxic media.
• Meet the highest requirements of end customers, OEMs and
planners.
• Are approved by all important classification societies world-
wide. This ensures the worldwide applicability of YFM safety valve

SIZE 1/2"-16"
BODY MATERIAL WCB, ASTM A395 , CF8 ,CF8M
PRESSURE PN1.0 PN1.6 150LB
LINER PFA, FEP, PTFE
