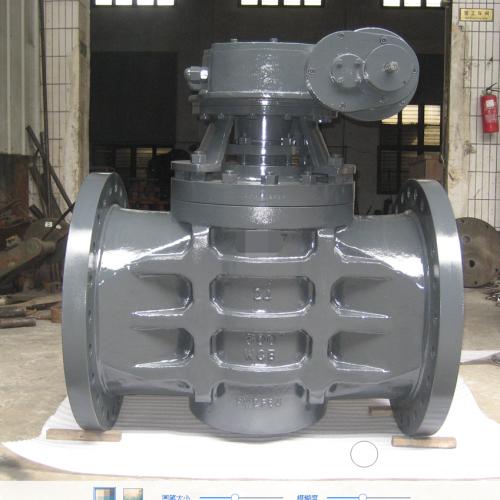

flanged type PLUG VALVE Description

Product name: PLUG VALVE

Type:Lubricated type plug valve,Non-Lubricated type,pressure balance type plug valve,Jacket plug valve,soft sealed type or metal sealed type.

Structure type:short, regular, venturi, and full bore pattern.

Design:API 6D, API 599, and ASME B16.34.
Material:Available in Forging for NPS ≤ 2 (A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5,F904), Casting (A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2,WCC,WC5,C5,WC6,WC9,WC11,WC12,),CD-4MCU,SS2205 . Monel, Inconel, Hastelloy B61,B62,copper,Bronze etc.
Nominal size: 2”-32” Inch.
Nominal class: 150LB-1500lb

HS Code: 84813000
End Connection: RF flange.Butt Welded connection.
Face to face: ASME B16.10.
Test and inspection: API 598.
Standard: ASME B16.34,API609,API6D

Product Range：
Body material: Carbon Steel, Stainless Steel, Alloy Steel.duplex stainless steel,B61,B62,copper,WCB,LCB,LCC,WCC,WC5,C5,WC6,WC9,WC11,CF8,CF8M,CF3,CF3M,CD-4MCU,SS2205
 etc.
Normal diameter: 2 - 32 Inch (DN50 - DN800).
End connection:  Flanged.
Pressure range: 150 - 300 LB (PN16 - PN32).
Working temperature: -196℃ - +573℃.
