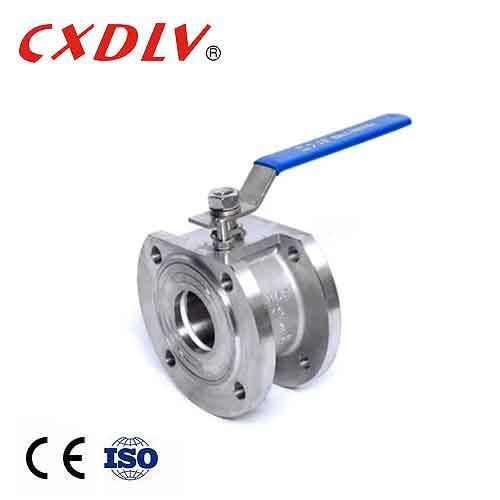

PN25 High Pressure Handle Wafer Floating Ball Valve PTFE PPL Seat

PN25 High Pressure Handle Wafer Floating Ball Valve PTFE PPL Seat
  • Model Number: Q71F
  • Brand Name: CXDLV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500Pcs/Mon/month
  • Payment: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

Q71F PN25 High Pressure Handle Wafer Floating Ball Valve PTFE PPL Seat Description

 General Features

Italy Ball Valve

Applicable Standards:
- Design and Manufacturing : GB / T12237 / 1989

- Connection : JB / T79

- Fireproof Test: GB / T13927 - 1992

Size Range:
- DN15 ~ DN200

 Nominal Pressure:
- Contruction 1.6 ~ 4.0 MPa
Temperature Limit:
- 20 °C ~ 350 °C

Floating

Full Port

End Entry



Wafer Type ball valves (or called “Italy Super Thin” Type ball valves) are used in the pipeline equipment in the condition of PN1.0~2.5MPa, working temperature of 29~180℃(sealing ring is RPTFE) or 29~180℃(sealing ring is PPL Polyphenylene), to achieve to cut off or connect the medium in the pipeline. The applicable medium, such as water, steamer, oil, Nitric Acid, Acetic Acid, Carbamide, or medium of oxidizability can be applied subject to difference valve material adopted.


Material CF8/CF8M/CF3/CF3M/WCB
Size DN15-DN200
Temperature -20°C~350°C
Connection Flanged ends
Standard ANSI GB JIS DIN
