PTFE Glasket RF Flanged Ends Straight Sight Glass High Pressure WCB Pyrex Glass

PTFE Glasket RF Flanged Ends Straight Sight Glass High Pressure WCB Pyrex Glass
  • Model Number: SG-ZT
  • Brand Name: CXDLV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500Pcs/Mon/month
  • Payment: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

SG-ZT PTFE Glasket RF Flanged Ends Straight Sight Glass High Pressure WCB Pyrex Glass Description

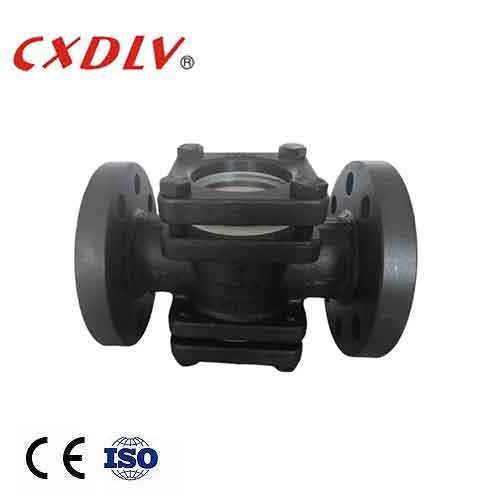

Double Flange Sight Glass

Applicable Standards:
- Design and Manufacturing: ASTM B16.34

- Flange Connection: ASTI16.5

- Test and Inspection: API598

Size Range:
- 1/2"~8"

Pressure Rating:
- ANSI 300LB
Temperature Range:
- -20°C~185°C



Double Window Sight Glass is a simple assembly of two glasses on single cast or fabricated body at two opposite sides. Use of these types of flow indicator is for spot inspection and view of process parameter.


Material Carbon Steel
Glass Tempered Glass
Glasket PTFE
Temperature 20℃~185℃
Size 1/2" ~8"
Connection ANSI Flange
