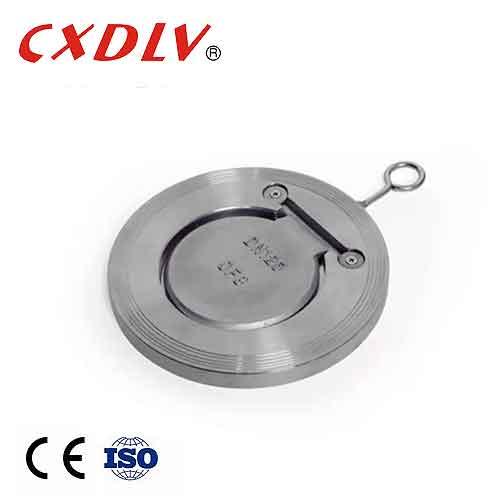

Single Door Flap Wafer Check Valve Ultra Thin Swing Type No Slam 300lb

Single Door Flap Wafer Check Valve Ultra Thin Swing Type No Slam 300lb
  • Model Number: H74
  • Brand Name: CXDLV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500Pcs/Mon/month
  • Payment: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

H74 Single Door Flap Wafer Check Valve Ultra Thin Swing Type No Slam 300lb Description

Single Door Flap Wafer Check Valve Ultra Thin Swing Type No Slam 300lb



 Specifications



Applicable Standards:

- FACE TO FACE: AP16D/ANSE B16.10

- FLANGE DIMENSION: ANSI/DIN/JIS/JB

Size Range:
- 1/1/2"~24"

Pressure Rating:
- 150LB~300LB
Temperature Range:
- -29°C~180°C



 Application



      Used for the supply and drainage pipes, discs imported at both ends of the central axis-oriented, flexible opening and closing, can be installed horizontally or vertically. The valve is spring loaded, its fast closing can effectively eliminate the water hammer or noise comes from water supply of high-rise building/fire protection, good sealing performance , turn off no noise. It has the advantages of small size, light weight, small fluid resistance, fatigue resistance and long life.


Material SS304/316/WCB
Size - 1/2 " ~ 8 "
Temperature -20°C~185°C
Standard ANSI GB JIS DIN
Media Water Oli Gas
