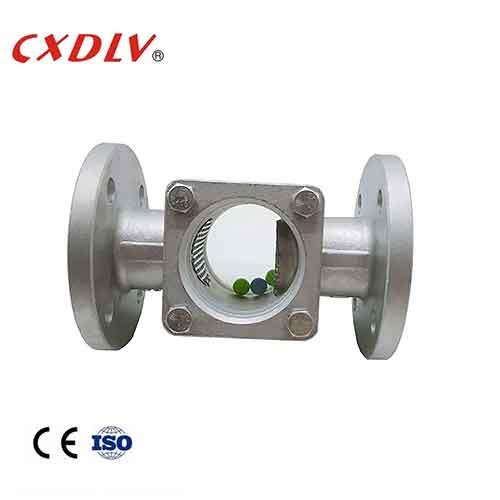

SS321 Floating Ball Flanged Sight Glass With Pyrex ANSI150LB Flange Connection

SS321 Floating Ball Flanged Sight Glass With Pyrex ANSI150LB Flange Connection
  • Model Number: SG
  • Brand Name: CXDLV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 500Pcs/Mon/month
  • Payment: T/T, Western Union, L/C, D/A, D/P, MoneyGram, Paypal
  • MemberShip: Gold Member
  • Inquiry Now
  • Bookmark & Share:

SG SS321 Floating Ball Flanged Sight Glass With Pyrex ANSI150LB Flange Connection Description

Double Flange Sight Glass

Applicable Standards:
- Design and Manufacturing: ANSI B16.34

- Flange Connection: ASME B16.5

- Test and Inspection: API598

Size Range:
- 1/2"~8"

Pressure Rating:
- ANSI 150LB/300LB
Temperature Range:
- -20°C~185°C


Material SS321 Stainless Steel
Glass Tempered Glass/Boroslicate Glass
Glasket PTFE
Temperature 20℃~185℃
Connection Flange Ends
Size 1/2"~8"
