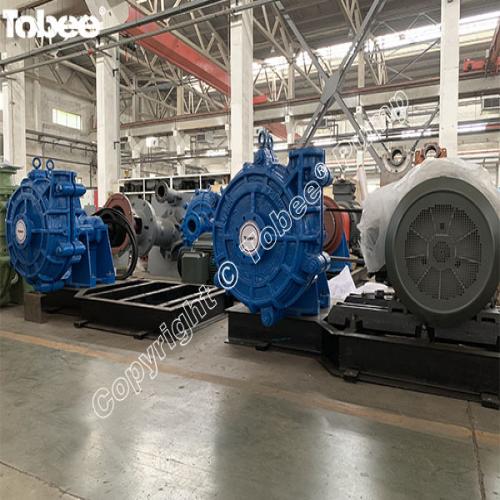

Tbee 4/3E-HH Horizontal Slurry Pumps

Tbee 4/3E-HH Horizontal Slurry Pumps
  • Model Number: 4/3E-HH
  • Brand Name: Tobee
  • Place of Origin: Hebei, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 2000/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

4/3E-HH Tbee 4/3E-HH Horizontal Slurry Pumps Description

Sales7(at)tobeepump.com


4/3E HH Horizontal Slurry Pump for produce high heads per stage at high pressures.



4/3E-HH High Head Slurry Pump is fit for a variety of applications ranging from filter press feeds to pipeline transport staging pumps. The high heads along with sturdier wear parts makes these pumps some of the most rugged in the slurry pump line. Extensive exterior ribbing allows for higher heads to be reached with a single slurry pump, and bulked up wet end parts handle the toughest applications in the field today.

Design Features:

√ Ductile iron fully lined casing provides durability, strength and long service life.
√ Multi-stage high pressure operation to 750 psi.
√ Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime.
√ Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs.
√ Large, open internal passages designed to maximize wear life and lower operating costs.
√ Thick elastomer and alloy liners provide superior corrosion resistance and maximum wear life.
√ Full flush gland, low flow, and dry running centrifugal seals reduce flush water usage minimizing pump operating costs.

4x3E-HH High Head Slurry Pump Applications:

Mining and mineral processing
Highly abrasive slurries
Mine refuse and tailings
Industrial processing
Coal and power plant ash
Sand and gravel
Mining duty abrasive slurries
Pulp & paper
Lime slurry
Alumina
Fertilizer
Acid Neutralization
In-plant slurry transfer pumps
Dyes & Intermediate
Solvent Transfer
Pharmaceutical & Chemicals



4/3E-HH High Head Slurry Pumps Performance Parameters:


Model

Max. Power

(kw)

Clear Water Performance

Impeller

Capacity Q

(m3/h)

Head H

(m)

Speed n

(rpm)

Eff. η

(%)

NPSH

(m)

Vane No.

Impeller Dia.

4/3E-HH

120

126-252

12-97

600-1400

50

2-5

5

508
