Tobee 14x12ST AH Slurry Pump G118K31 Lantern Restrictor

Tobee 14x12ST AH Slurry Pump G118K31 Lantern Restrictor
  • Model Number: 14x12ST-AH
  • Brand Name: Tobee
  • Place of Origin: Hebei, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 2000/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

14x12ST-AH Tobee 14x12ST AH Slurry Pump G118K31 Lantern Restrictor Description

Sales7(at)tobeepump.com

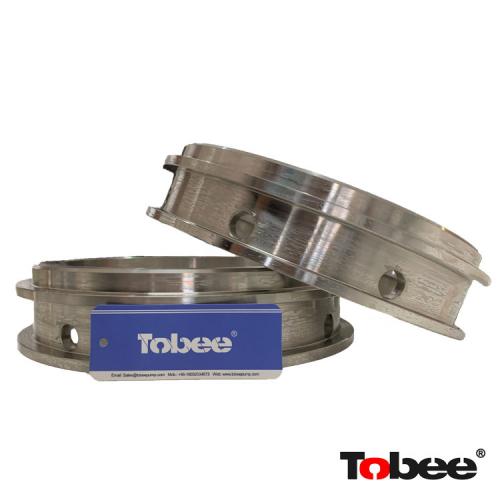

G118-K31 Lantern Restrictor of 14x12ST-AH Horizontal Slurry Pump Spare Parts.



In slurry pumps, a slurry pump lantern restrictor is located between slurry pump gland packing and slurry pump impeller. It works as a lantern ring, but at the same time has clearances that restrict the flow into the pump. These clearances result in significantly more flush water being required, as there is no longer the interference fit between the ring of gland packing and slurry pump shaft.

By using a lantern restrictor, if the gland flush is always on, at a higher pressure than in the slurry pump wet end parts and the flush water is clean, the packing never encounters slurry and the sleeve and packing life is usually acceptable. Because the sleeve remains in good condition, the leakage is acceptable.



Slurry pump Lantern Restrictor Part Codes: B118C21, C118C21, D118C21, E118C21, F118C21, G118C21, H118C21, B118C23, C118C23, D118C23, E118C23, F118C23, G118C23, H118C23, B118K31, C118K31, D118K31, E118K31, F118K31, G118K31, H118K31...
