2/1.5B-AH Tobee 2/1.5B-AH Slurry Pump Wetted Parts Description

Email: Sales7(at)tobeepump.com

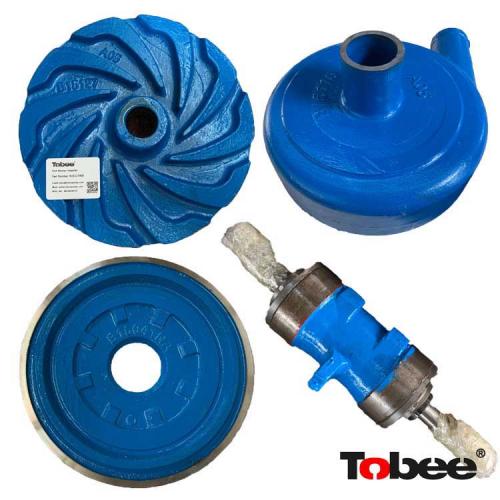

2/1.5B-AH Slurry Pump Wear Parts include slurry pump impeller, slurry pump liners, slurry pump bearing assembly, slurry pump frame plate liner insert etc, They are very easily worn-out components because the wear parts work under longtime impact of abrasive and corrosive slurries in the high speed.



Tobee® is committed to improvement of slurry pump wear parts continues with the introduction of the Hyperchrome alloy material. Slurry pump wear parts have direct connection with slurry, are very crucial to the service life of slurry pumps. The slurry pump wear parts include slurry pump impeller, slurry pump liners, slurry pump throatbush, slurry pump frame plate liner insert, slurry pump casing etc, They are very easily worn-out components because the wear parts work under longtime impact of abrasive and corrosive slurries in the high speed. For the long service life of slurry pump wear parts, the material plays an important role here.

Slurry Pump Wear Parts Benefits:
• Increased wear life – Tobee slurry pump wear parts is designed to increase wear life between 30% and 50%
• Power savings – lower pump power consumption
• Cost reduction – higher pump efficiency sustained over a longer pumping operation time
• Retrofit – new high abrasion resistance slurry pump wear parts retrofit to your current slurry pumps
• Lower NPSH requirements – results in enhanced hydraulic performance and extended wear life
• Material combinations – rubber or metal part combinations available

No.

Pump Parts Name

Pump Model

Pump Part Code

Matl. Code

Unit Weight
(kg)

1

Adjust Screw

2/1.5B-AH

B001

E62

2

Base

2/1.5B-AH

B003M

G01

20.0

3

Bearing Assembly

2/1.5B-AH

B005M

ZWZ Bearing

15.5

4

Bearing Housing

2/1.5B-AH

B004M

G01

7.0

5

Cover Plate

2/1.5B-AH

B15013

D21

14.6

6

Cover Plate Bolt

2/1.5B-AH

B015

E65

7

Cover Plate Liner

2/1.5B-AH

B15017

R55

3.0

8

Discharge Joint

2/1.5B-AH

B15132L

S01

0.1

9

End Cover

2/1.5B-AH

B024

G01

0.8

10

Expeller

2/1.5B-AH

B028

A05

0.6

11

Expeller Ring

2/1.5B-AH

B029

A05

2.6

12

Expeller Ring

2/1.5B-AH

B029R

R55

0.7

13

Frame Plate

2/1.5B-AH

B15032

D21

14.8

14

Frame Plate Bolt

2/1.5B-AH

B026

E62

15

Frame Plate Liner

2/1.5B-AH

B15036

R55

2.0

16

Frame Plate Liner Insert

2/1.5B-AH

B15041

A05

3.4

17

Frame Plate Stud

2/1.5B-AH

B039

E62

18

Gland

2/1.5B-AH

B044

G01

0.4

19

Gland

2/1.5B-AH

B044

C23

0.4

20

Gland Bolt

2/1.5B-AH

B045

C23

21

Grease Retainer

2/1.5B-AH

B046

G01

0.2

22

Impeller

2/1.5B-AH

B15127

A05

5.9

23

Impeller

2/1.5B-AH

B15127

R55

2.0

24

Intake Joint

2/1.5B-AH

B15060

S01

0.04

25

Labyrinth

2/1.5B-AH

B062

G01

0.3

26

Labyrinth Locknut

2/1.5B-AH

B061

E62

0.1

27

Lantern Restrictor

2/1.5B-AH

B118

C23

0.2

28

Lantern Ring

2/1.5B-AH

B063

C23

0.1

29

Lip Seal

2/1.5B-AH

B090

S01

30

Neck Ring

2/1.5B-AH

B067

C23

0.03

31

O ring

2/1.5B-AH

B109

S10

32

O ring

2/1.5B-AH

B217

S10

33

Packing

2/1.5B-AH

B111

Q05

34

Packing

2/1.5B-AH

B111

Q05A

35

Packing

2/1.5B-AH

B111

Q21

36

Packing

2/1.5B-AH

B111

X06

37

Piston Ring

2/1.5B-AH

B108

G01

38

Seal

2/1.5B-AH

B122

S01

0.1

39

Shaft

2/1.5B-AH

B073M

E05

3.9

40

Shaft Sleeve

2/1.5B-AH

B075

C21

0.3

41

Shaft Sleeve

2/1.5B-AH

B075

C23

0.3

42

Shaft Sleeve

1.5/1 B-AH

B075

J05

43

Shaft Sleeve

2/1.5B-AH

B076

C21

0.3

44

Shaft Sleeve

2/1.5B-AH

B076

C23

0.3

45

Shaft Spacer

2/1.5B-AH

B117

C21

0.2

46

Shaft Spacer

2/1.5B-AH

B117

C23

47

Shaft Spacer

1.5/1 B-AH

B117

J05

0.2

48

Shim Set

2/1.5B-AH

B025

P10

49

Stuffing Box

2/1.5B-AH

B078

A05

2.5

50

Volute Frame Seal

2/1.5B-AH

B15125

S01

0.02

51

Volute Liner

2/1.5B-AH

B15110

A05

15.0
