4/3C-AH Tobee 4/3C-AH Frame Plate Liner Insert D3041HS1A05 Description
Email: Sales7(at)tobeepump.com

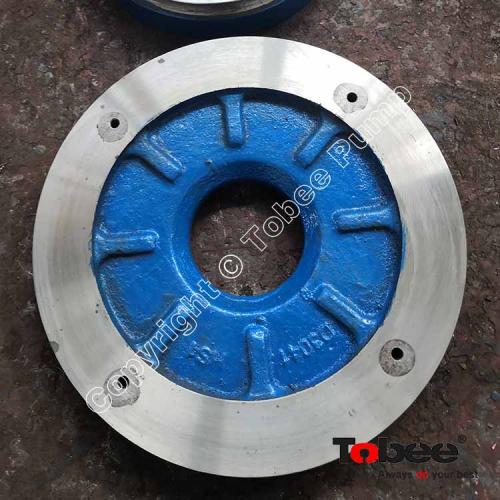

D3041HS1A05 Frame Plate Liner Insert is Hi-seal wear part of 4x3D-AH Horizontal Slurry Pump.
Frame plate liner insert is a wet part where the shaft passes through, it is drive side liner which is connected with frame plate in horizontal slurry pump.
Alloy frame plate liner insert is common in small and large pumps, but rubber frame plate liner insert appears in large pumps, because rubber frame plate liner insert and frame plate liner are normally in one solid piece in small pumps.
Tobee® 4/3 D AH Slurry Pumps Applications:
The 4/3 D AH Slurry pumps are widely used in industry of mining, electrical power, metallurgy, coal, environmental protection, etc for transportation of abrasive solid slurry.
√ Mining & Mineral Processing (Gold/Copper/Iron Ore/Lead & Zinc/Tin/Wolfram etc.)
√ Environmental Water & Sewage Treatment
√ Power & Oil (Bottom ash, lime slurry for FGD)
√ Chemical Industry (Phosphate/Potash/Chemical Fertilizer etc.)
√ Food and Other Industry (Sugar/Paper & Pulp/Tobacco)
√ Dredging (Sand & Gravel)
