TOBEE 8x6x14 Mission Magnum Pump Impeller 19116-A0-30

TOBEE 8x6x14 Mission Magnum Pump Impeller 19116-A0-30
  • Model Number: 8x6x14
  • Brand Name: Tobee
  • Place of Origin: Hebei, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 2000/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

8x6x14 TOBEE 8x6x14 Mission Magnum Pump Impeller 19116-A0-30 Description

Email:
Web: www.tobeepump.com | www.slurrypumpsupply.com | www.tobee.store | www.tobee.cc | www.hydroman.cn

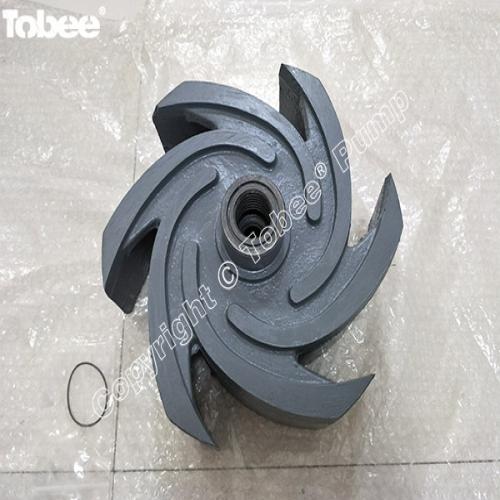

19116-A0-30 Impeller is 14 inch diameter for Mission Magnum 8 x 6 x 14 Centrifugal Pumps.

8x6x14 Magnum Pump Impellers:

19116-54-30  Impeller  8 x 6 – 9.5″
19116-50-30  Impeller  8 x 6 – 9″
19116-A0-30  Impeller  8 x 6 – 14″
19116-94-30  Impeller  8 x 6 – 13.5″
19116-90-30  Impeller  8 x 6 – 13″
19116-84-30  Impeller  8 x 6 – 12.5″
19116-80-30  Impeller  8 x 6 – 12″
19116-74-30  Impeller  8 x 6 – 11.5″
19116-70-30  Impeller  8 x 6 – 11″
19116-64-30  Impeller  8 x 6 – 10.5″

Tobee® Mission Magnum I Pumps are proven as reliable, heavy-duty, low-cost slurry pumps. The 3×2×13 through 8×6×14 pumps all feature the same power end, which ensures production and reduced spare-part inventory requirements. The Mission MAGNUM I has been engineered for the toughest jobs in drilling, production, well-servicing, and industrial applications. The MAGNUM I is more powerful, more durable, and easier to maintain than any conventional pump in use today.

The Magnum has an open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The Magnum is available in Magnachrome™, hard iron, stainless steel, and aluminum bronze fluid ends. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).
Also available, Horizontal and Vertical Close Coupled Magnum.

Design Features:

• Up to 50% more capacity from the 8 x 6 pump
• Optimum pressure at low operating speeds
• Thicker casing to extend life from wear and corrosion
• New impeller design to reduce loads and extend bearing life
• Larger, stronger shaft to reduce deflection
• Replaceable shaft sleeve in packing wear area
• Larger, long-life bearings
• Replaceable stuffing box cover
• Smoother, non-turbulent flow throughout casing

Typical Applications:

• Mud pumping – offshore/onshore
• Solids control
• Dredging
• Leveling or Rig Platform (ballast)
• Barite, ferric oxide, and mineral oil
• Base drilling muds
• Glass fibers
• Sugar processing
• Ash or coal conveyers
• Cement
