6/4 DAH Tobee alterbative Warman 6x4D-AH Heavy Duty Slurry Pump for Silica Slurries Description

Sales7(at)tobeepump.com

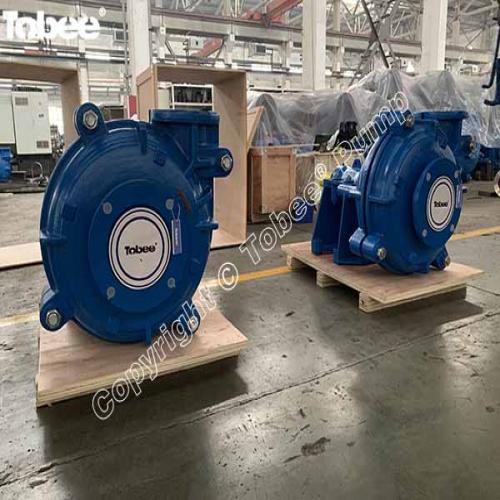

6x4D-AH Heavy Duty Pumps with high chrome A05 wear parts that suitable for silica slurry.



6x4D-AH Slurry Pump is a single-stage, single-suction and horizontal heavy duty centrifugal slurry pump with a cantilever design, The 6x4 slury pumps are mainly used in solids containing applications. Depending on process conditions, equipment should be suitable for highly abrasive or corrosive liquids.

Design Features:

√ Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner and can be removed completely.
√ Interchangeable anti-abrasive wet parts made of high-chrome alloys.
√ The discharge branch can be oriented to any eight positions at the interval of 45 degrees.
√ Various drive types: DC (direct connection), V-belt drive, gear box reducer, hydraulic couplings, VFD, SCR control etc.
√ The shaft seal uses the packing seal, expeller seal and mechanical seal.



6/4 D AH Slurry Pumps Performance Parameters:

Model

Max. Power

(kw)

Materials

Clear Water Performance

Impeller

Vane No.

Liner

Impeller

Capacity Q

(m3/h)

Head H

(m)

Speed n

(rpm)

Eff. η

(%)

NPSH

(m)

6/4D-AH

60

Metal

Metal

162~360

12~56

800~1550

65

5~8

5

Typical Application:

· Iron Ore Dressing Plant
· Copper Concentration Plant
· Gold Mine Concentration Plant
· Molybdenum Concentration Plant
· Potash Fertilizer Plant
· Other Mineral Processing Plants
· Alumina Industry
· Coal Washery
· Power Plant
· Sand Excavation
· Building Material Industry
· Chemical Industry
· Other industries
