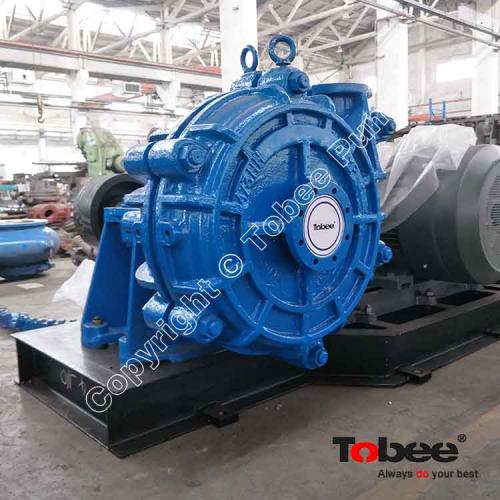

Tobee High Pressure 4/3E-HH Centrifugal Slurry Pumps and Parts
- Model Number: 4/3E-HH
- Brand Name: Tobee
- Place of Origin: Hebei, China
- Minimum Order Quantity: 1
- Supply Capacity: 2000/month
- Payment: T/T
- MemberShip: Free Member
- Inquiry Now
4/3E-HH Tobee High Pressure 4/3E-HH Centrifugal Slurry Pumps and Parts Description
Email: Sales7(at)tobeepump.com
4/3E HH horizontal centrifugal slurry pumps, 4/3E HH high head mining pumps, HH pumps and wearing spare parts manufacturer.
Tobee® high head slurry pumps are
those of cantilever, horizontal and centrifugal slurry pump, whose
shafts can be sealed by packing seals or by centrifugal type seals. The
positions of the pump outlet can be positioned at an interval of 45°
According to different requirements, so eight different angles can be
applied by rotation in installation.
Tobee® 4/3 E HH High Head Slurry Pump Design Features:
• High head, high pressure centrifugal end suction slurry pump design.
• Ductile iron fully lined casing provides durability, strength and long service life.
• Hyper wear resistance materials for longtime worklife.
• Multi-stage high pressure operation allowed.
• Heavy duty construction with through-bolt design provides ease of maintenance and results in less down time
• Large diameter, slow turning, high efficiency impellers result in maximum wear life and lower operating costs
• Large, open internal passages maximize wear life and lower operating costs
• Full flush gland, low flow, and dry running centrifugal seals reduce flush water usage minimizing pump operating costs.
4/3E HH slurry pumps and wet end parts can be used in handling highly abrasive, high density slurries with excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost. The coal slurry pumps can be used in many applications, such as Coal prep, Pipeline transport, High velocity hydraulic transport, Mineral processing, Cyclone feeds, Aggregate processing, Fine primary mill grinding, Chemical slurry service, Tailings, secondary grinding, Industrial processing, Pulp and paper, Food processing, Cracking operations, Ash handling etc.
