Tobee Slurry Pump Wear Parts Volute Liner C2110A05

Model Number: 3x2C-AH
Brand Name: Tobee
Place of Origin: Hebei, China
Minimum Order Quantity: 1
Supply Capacity: 2000/month
Payment: T/T
MemberShip: Free Member
Inquiry Now
Bookmark & Share:

3x2C-AH Tobee Slurry Pump Wear Parts Volute Liner C2110A05 Description

Email: Sales7(at)tobeepump.com

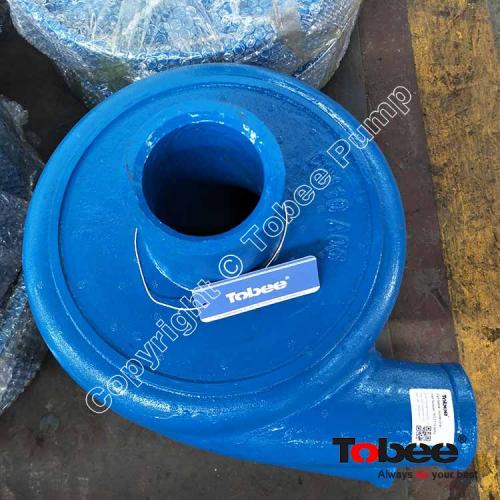

Volute Liner C2110A05 is used for 3x2C-AH Slurry Pumps, it's one of the wear parts for slurry pumps.

Slurry Pump Volute Liners are interchangeable with AH/HH/L/M slurry pump volute lines, It is also one of wetted parts for slurry pumps. It forms a pump chamber with throat bush and frame plate liner insert and so slurry will wash them, Slurry pump volute Liner is a curved funnel increasing in area to the discharge port. It is often used together with impeller for slurry pumps. As the area of the cross-section increases, the volute reduces the speed of the liquid and increases the pressure of the liquid.

Slurry Pump Liners Functions:

Closed the impeller to a certain space, so that inhaled and forced out liquid through the role of the impeller.

Most of Pump casings are made to be Volute-shaped, it is also called the volute Because the area of channel section is widening , the high speed liquid around the impeller gradually reduce the flow velocity, and part of the kinetic energy is converted to static pressure can effectively

The pump casing is not only collected liquid that thrown out by the slurry pump impeller , but also an energy conversion device

Lead evenly the liquid to the impeller, collect the high-speed flowed liquid from the impeller, and send to the next level or export-led.

Realize the energy conversion, Reduce the flow speed, transform the kinetic energy to pressure energy .

Connect other components, and play a supporting role.

Slurry Pump Volute Liners:

Volute Liner Code

AH Slurry Pump

Volute Liner Metal Materials

B1110

1.5/1B-AH
