PN16 Y-Strainer

  PN16 Y-Strainer
  • Model Number: PN16 Y-Strainer
  • Brand Name: tanghai
  • Place of Origin: tianjin, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 1000/month
  • Payment: EXW/FOB/C&F/CIF
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

PN16 Y-Strainer PN16 Y-Strainer Description

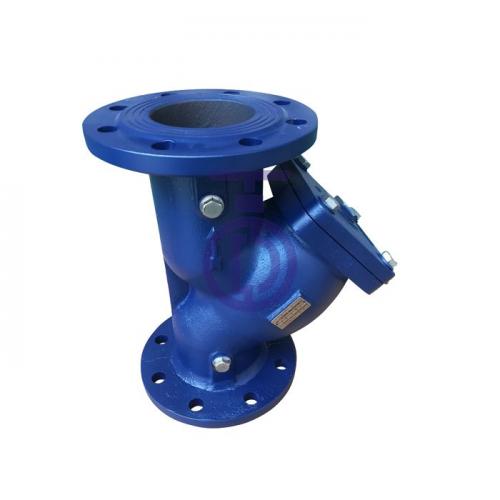

  PN16 Y-Strainer

Y-Strainers are manufactured to remove unwanted debris from the piping system that may cause damage to expensive equipment downstream.

Y-Strainers can be applied in either horizontal or vertical pipelines as long as the straining element is placed in the downward position, with the arrow matching the direction of flow.

Body: Ductile Iron A536 65-45-12 with Class 125 ANSI B16.1 Flange

Pressure: 200 PSI @ 150°F

Screen: 304 Stainless Steel

Sizes: 2", 2 1/2", 3", 4", 6", 8", 10"

Temperature: 185°F



Face to Face dimensions Conform to EN558-1 list1

Flange dimensions Conform to the request of client's

Testing Conform to EN12266-1

If you have any question on PN16 Y strainer, valve strainers, cast iron strainer. We will give the professional answers to your short questions. If you need, welcome to contact us to know more!

MATERIALS OF PARTS

Number

Part Name

Material

1

Body

EN-GJS-450-10

2

SCREEN

SS304/SS410

3

Bonnet

EN-GJS-450-10

4

Plug

Mn-Brass

5

Washer

Graphite

6

Bolts

Steel

7

Washer

Steel



DN

15

20

25

32

40

50

65

80

100

125

150

200

250

300

350

400

450

500

600

L

123

150

160

180

200

230

290

310

350

400

480

600

730

850

980

1100

1200

1250

1450

D

95

105

115

140

150

165

185

200

220

250

285

340

405

460

520

580

640

715

840

DI

65

75

85

100

110

125

145

160

180

210

240

295

355

410

470

525

585

650

770

D2

46

56

65

76

84

99

118

132

156

184

211

266

319

370

429

480

848

609

720

b

14

16

16

18

18

20

20

22

24

26

26

30

32

32

36

38

30

31.5

36

n-d

4-14

4-14

4-14

4-19

4-19

4-19

4-19

8-19

8-19

8-19

8-23

12-23

12-28

12-28

16-28

16-31

20-31

20-34

20-37

f

2

2

3

3

3

3

3

3

3

3

3

3

3

4

4

4

4

4

5

H

80

81

81

100

113

125

150

169

213

250

281

357

460

532

645

698

802

845

998

Plug

1/2''

1/2''

1/2''

1/2''

1/2''

1/2''

1''

1''

1''

1-1/4''

1-1/4''

1-1/2''

2''

2''

2''

2''

2''

2''

2''
