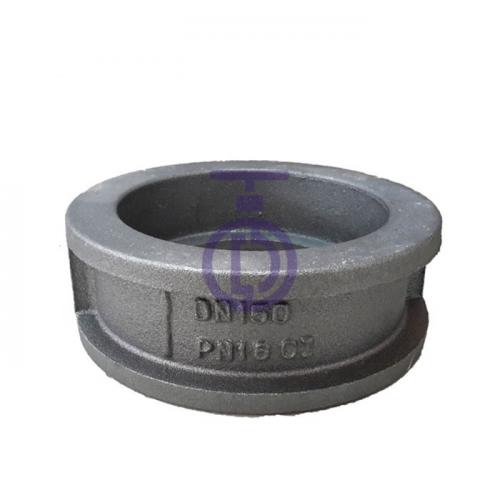

Check Valve Body

 Check Valve Body
  • Model Number: Check Valve Body
  • Brand Name: oem
  • Place of Origin: tianjin, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 1000/month
  • Payment: EXW/FOB/C&F/CIF
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

Check Valve Body Check Valve Body Description

 Check Valve Body

Design and Manufacture Conform to EN 12334

Flange dimensions Conform to EN 1092-2 PN16、PN25/ANSI B16.1 CLASS 125

Face to Face dimensions Conform to EN558-1 list 16

Testing Conform to EN12266-1

The Choice of the Material

BODY

Carbon iron/Ductile iron/AL-bronze/Stainless Steel/Duplex Stainless Steel

DISC

Ductile iron/AL-bronze/CF8/CF8M/SS201/SS302/SS316

BONNET

Ductile iron/AL-bronze/Duplex Stainless Steel/CF8/CF8M

STEM

Carbon Steel/SS410/SS416/SS420/SS304/SS316/MONEL K500

SEAT

NBR(buna-N)/EPDM/PTFE/Nature Rubber/VITON/Hypalon

SHORT BUSHING

PTFE

LONG BUSHING

PTFE

O-ring

NBR/EPDM

PIN

SS403/SS316/MONEL K500/Duplex Stainless Steel

We are Backup Seat Liner,Industrial Stainless Steel, Butterfly Valve Duplex Stem factory in China. If you need, welcome to contact us to know more!
