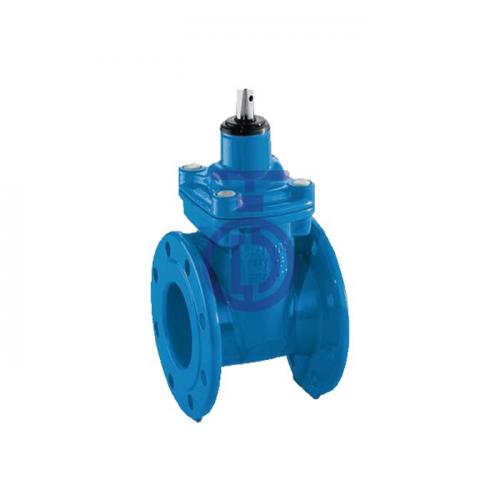

New Style Bare Shaft Gate Valve

 New Style Bare Shaft Gate Valve
  • Model Number: Bare Shaft Gate Valve
  • Brand Name: tanghai
  • Place of Origin: tianjin, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 1000/month
  • Payment: EXW/FOB/C&F/CIF
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

Bare Shaft Gate Valve New Style Bare Shaft Gate Valve Description

 New Style Bare Shaft Gate Valve

1. Tanghai Valve is available in both non-rising stem and outside stem & yoke (OS&Y) designs.

2. Available in sizes 3” through 96” the Metal Seated Solid Wedge Valve is designed in accordance with AWWA C500 standards as well as ANSI and ASTM standards.

3. The valve is available with hand wheels, operating nuts and integrally cast mounting pads for gears or electric actuators and all valves are coated internally and externally with liquid epoxy conforming to AWWA C500.

4. Designed and manufactured for use in waste water and sewage applications.

MATERIALS OF PARTS

Number

Part Name

Material

Optional Material

1

Body

CAST IRON

EN-GJL-250

2

Body seat ring

CAST BRONZE

ASTM B62

3

Wedge ring

CAST BRONZE

ASTM B62

4

Wedge

CAST IRON

EN-GJL-250

5

Yoke bushing

CAST BRONZE

ASTM B584

6

Stem

BRASS

ASTM B16

7

Body gasket

GRAPHITE

NON ASBESTOS

8

Bolts

STEEL

CARBON STEEL

9

Nuts

STEEL

CARBON STEEL

10

Bonnet

CAST IRON

EN-GJL-250

11

Gland follower bolts

STEEL

CARBON STEEL

12

Stuffing box gasket

GRAPHITE

NON ASBESTOS

13

Suffing box

CAST IRON

EN-GJL-250

14

Packing

GRAPHITE

NON ASBESTOS

15

Gland follower

DUCTILE IRON

EN-GJS-450-10

16

Handwheel

CAST IRON

EN-GJL-250

17

Name plate

AL


18

Wsher

STEEL

CARBON STEEL

19

Handwheel nut

STEEL

CARBON STEEL



DIMENSION(mm)

DN

50

65

80

100

125

150

200

250

300

350

400

450

500

600

D

165

185

200

220

250

285

340

395

445

505

565

615

670

780

D1

125

145

160

180

210

240

295

350

400

460

515

565

620

725

D2

99

118

132

156

184

211

266

319

370

429

480

530

582

682

b

20

20

22

24

26

26

26

28

28

30

32

32

34

36

f

3

3

3

3

3

3

3

3

4

4

4

4

4

5

n-d

4-Ø19

4-Ø19

8-Ø19

8-Ø19

8-Ø19

8-Ø23

8-Ø23

12-Ø23

12-Ø23

16-Ø23

16-Ø28

20-Ø28

20-Ø28

20-Ø31

L

178

190

203

229

254

267

292

330

356

381

406

432

457

508

W

178

178

200

254

300

300

348

400

457

757

558

610

640

762
