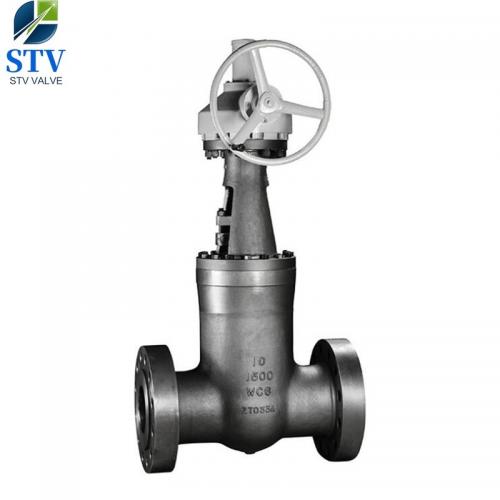

1500LB Pressure Seal Gate Valve,WC6 Body,DN250,Flange End

1500LB Pressure Seal Gate Valve,WC6 Body,DN250,Flange End
  • Model Number: Z541H
  • Brand Name: STV
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1PC
  • Supply Capacity: 1000PCS/month
  • Payment: T/T,
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

Z541H 1500LB Pressure Seal Gate Valve,WC6 Body,DN250,Flange End Description

Description

Design and Manufacture:Cast Steel Gate Valve to API 600(16.34)

Inspection and Test:API598,API600 or API 6D
ASME B16.5(for NPS≤24,ASME B 16.47 series B,API 605,ASME B16.47 A Series,MSS SP-44(for NPS>24)

BW end Dimension:ASME B16.25

Face to Face and End to End:ASME B16.10

Pressure-temperature ratings:ASME B16.34

Product Range

Body material: carbon steel, stainless steel, alloy steel

Nominal diameter:2″~36″(DN50~DN900)

End Connection: RF,RTJ, BW

Pressure range: Class150~2500(PN16~PN420)

Working temperature:-29℃~+560℃

Operation: Hand wheel,Gear,Electric Actuator,etc.



Product Name1500LB Pressure Seal Gate Valve,WC6 Body,DN250,Flange End1. MaterialWC62. Size10”4. PortFull Port5. Working Pressure1500lb6. Connection EndsRF7. Working Temp.-29~520ºC,8. Suitable MediumWater, Natural Gas, Oil and some corrosive liquid9. OperatedGear Box10. Inspection & TestingAccording to API598Shipment
Delivery Time30 DaysPackageStandard Exporting Plywood CaseShipping PortNingbo/Shanghai, ChinaShipping TermsExw, FOB, CFR, CIF, etc.Payment TermsT/T, Western Union, PayPal, etc.
30% prepayment, 70% balance paid before shippingCountry of OriginWenzhou city, ChinaProduction Capacity6000 ton/yearMOQ1 PCS/size
