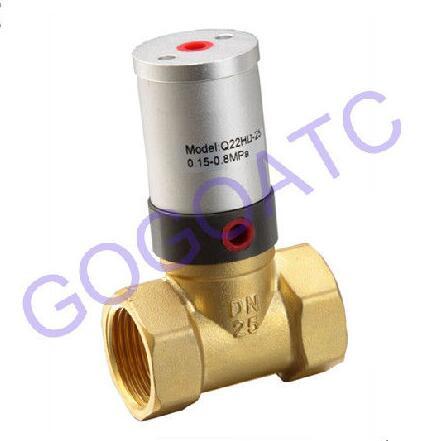

2/2 Way Piston Operated Pneumatic Air Control Valve

2/2 Way Piston Operated Pneumatic Air Control Valve
  • Model Number: Q22HD
  • Brand Name: GOGO ATC
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 50 Pieces
  • Supply Capacity: 3000 Pieces/month
  • Payment: T/T, Western Union, Paypal
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

Q22HD 2/2 Way Piston Operated Pneumatic Air Control Valve Description

water air oil gas 2/2 way piston pneumatic control valve with brass body Q22HD



Characteristic:

pneumatic piston valves fo neutral liquid and gaseus media,

sigle and double acting optional.

Widely used in food area and medicine area, industrial area, washing area and painting area and car-making area.

The valves are divided as Cut-off solenoid valve, Gate-type solenoid valve and Adjustable double position solenoid valve



Specification

Q Pneumatic    22 Two-position Two-way        HD pneumatic operation    1:single action  blank:double action   Joint Pipe Bore    B:Gate Valve  Blank:stop valve

Model    Q22HD-15    Q22HD-20    Q22HD-25    Q22HD-35    Q22HD-40    Q22HD-50

Nominal diameter    15    20    25    35    40    50

Port size    1/2"    3/4"    1"    1-1/4"    1-1/2"    2"

Working medium    Air, water, oil

Working pressure    0.2~0.6Mpa

Temperature    5~50°C

KV    4    5    10    25    25    40


Position And Way No Two-position Two-way
Pressure 0.2~0.6Mpa
Operating Temperature 5~50°C
Media Air, Water, Oil
Material Brass
