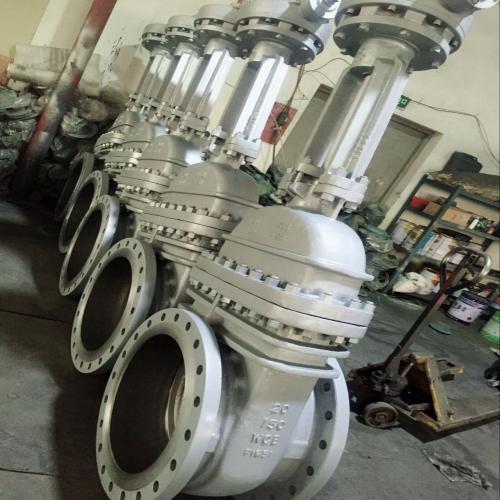

API cast steel gate valve class 150-1500

API cast steel gate valve class 150-1500
  • Model Number: Z40H
  • Brand Name: CARBON
  • Place of Origin: zhejiang, China
  • Minimum Order Quantity: 10
  • Supply Capacity: 1000/month
  • Payment: T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

Z40H API cast steel gate valve class 150-1500 Description


CLASS 150~1500 CAST STEEL GATE VALVE


OS&Y,Rising stem,Flexible Wedge

Bolted Bonnet,Threaded or welded seat ring

ASTM A216 WCB,A217 WC6,A351 CF8,A351 CF8M,

A351 CF3,A351 CF3M,A351 CN7M


Standards compliance


Design and Manufacture:ANSIB16.34,API600 API6D,API603,BS1414

Face to face(end to end):ANSIB16.10,API6D

Flanged connection:2"~24"to ANSIB16.5,22",26"~36"to MSS-SP-44 to API605 on Request

Test and inspection:API598,API6D

Butt welded end:ANSIB16.5


A.Anti-friction ball thrust bearing:Reduces friction between mating parts to ensure smooth operation

B.Grub screw:Secures yoke nut in the bonnet

C.Grease nipple:Supplies lubricant to the mating parts


Body material A216-WCB/ A352-LCB/ A271-WC6/ A276-WC9
Bonnet material A216-WCB/ A352-LCB/ A271-WC6/ A276-WC9
Gasket material Spiral wound/Soft lron
Gland Packing Graphite
Bolt and nut A193 Gr B7/A194 Gr 2H
