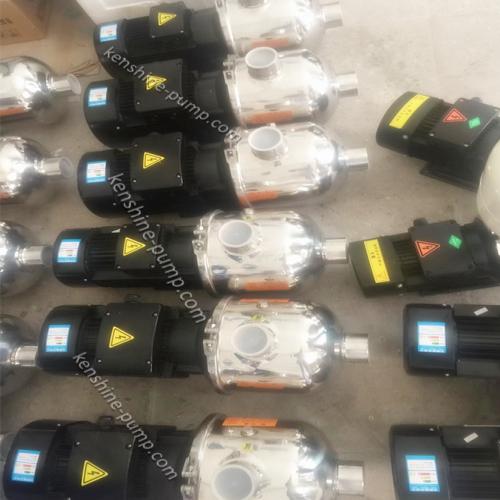

CHL Horizontal stainless steel multistage centrifugal water pump

CHL Horizontal stainless steel multistage centrifugal water pump
  • Model Number: CHL2-50
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1SET
  • Supply Capacity: 1000Sets per month/month
  • Payment: T/T in advance
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

CHL2-50 CHL Horizontal stainless steel multistage centrifugal water pump Description

CHL light type horizontal multistage centrifugal pumps are manufactured with repair free mechanical seals and the flow components are made of stainless steel (304 or 316).The pump has low noise, light corrosion resistance, beautiful appearance, small size, light weight and long service life etc features.

Application:

CHL horizontal multistage stainless steel centrifugal  pumps are widely used for domestic central air-conditioning circulation and industrial liquid transfer Such as demineralized water, soft water, purification system, light oil circulation and pressurization etc.

small central air conditioning circulation

cooling system, chiller system.

industrial cleaning

water treatment (water purification)

aquaculture

fertilization/metering system

environmental application

CHL horizontal multistage centrifugal stainless steel pump is used to transfer the

thin, dry, non-condensing, non-explosive liquids without solid particles or fibers.

Liquid temperature &room temperature 15 to 70 DegC

Hot water operated 70 to 110 DegC

Maximum environment temperature: 40 DegC

Maximum operating pressure: 10 bar

Maximum inlet pressure is subject to maximum operating pressure

Ph: 4 to 9

Motor:

Fully enclosed, air cooled two poles motors

Protection class: IP55

Insulation class: F

Voltage:

1Phase, 220V to 240V,50HZ,2900RPM

3Phase, 220V to 240V, 50HZ,2900RPM

3Phase, 380V to 415V, 50HZ,2900RPM

1Phase, 220V to 240V, 60HZ,3500RPM

3Phase, 220V to 240V, 60HZ,3500RPM

3Phase,380V to 415V, 60HZ,3500RPM


Flow rate 2-100m3/h
Head 3-300m
pump material stainless steel
