Class 150 Knife Gate Valve

Class 150 Knife Gate Valve
  • Model Number: GLK08
  • Brand Name: Guanli Valve
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1 Set
  • Supply Capacity: 10000 Sets/month
  • Payment: Visa, T/T, L/C, Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

GLK08 Class 150 Knife Gate Valve Description

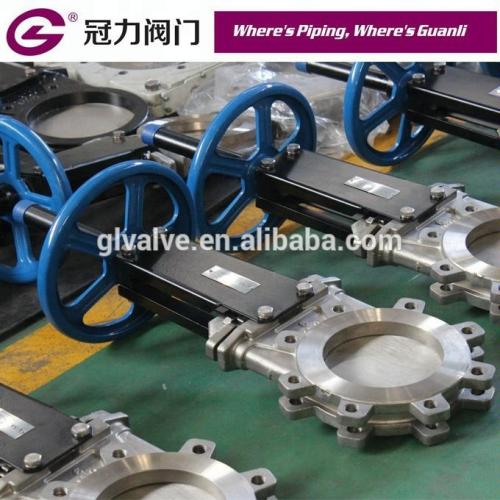

GUANLI  Class 150 Knife Gate Valve GLK08 product line is for tough applications such as solids, slurries, wastewater, bulk handling, pulp and paper, and food processing. Valves are available in wafer or lug style, as well as with ductile iron bodies or stainless steel bodies.


FEATURES AND OPTIONS

Handwheel or cylinder operated from 2" through 48" (custom sizes upon request)

Stainless or cast steel body options

Designed to ensure non-clogging shut-off with solids in the pipeline

ANSI 150# flanged drilling

EPDM, BUNA-N, Viton  seat options to suit virtually any application

Limit switches, modulating positioners, NAMUR solenoids and many other custom options available

Material Casting
Pressure Low Pressure
Temperature of Media Low Temperature
Body CF8M/CF8
Knife SS316/SS304
Yoke ANSI 1045+epoxy powder
Connection AMSE B16.5
Standard MSS SP81
