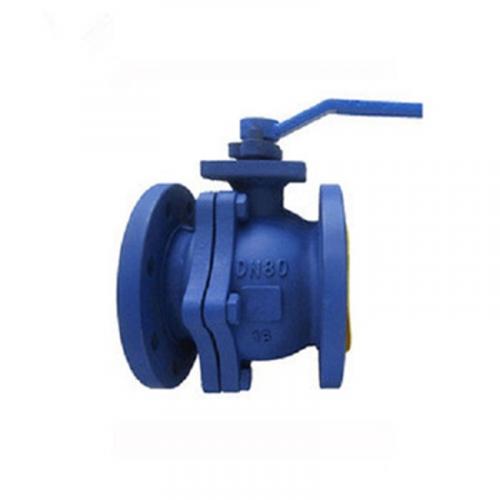

DIN FLANGE CARBON STEEL BALL VALVE

DIN FLANGE CARBON STEEL BALL VALVE
  • Model Number: XT005
  • Brand Name: XT
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1set
  • Supply Capacity: 15000000/month
  • Payment: TT
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

XT005 DIN FLANGE CARBON STEEL BALL VALVE Description

Duplex Stainless Steel Ball Valve Manufacturer

Features:

Size Range:1/2" up to 12"

Pressure Range:PN16 To PN63

End Connection:BW,RF

Operate:Lever,Gear,Actuator

Material:

Carbon Steel

Seals:Soft Seal

Standards:

Valves Design:DIN 3357

Face to Face:DIN 3202-F4

End Connection:EN1092-1

Testing&Inspection:EN12266

Suitable Medium:Water,Oil,Air And Some Corrosive liquid

A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

Application scope: petroleum chemical industry, electric power, metallurgy, medicine, real estate, municipal engineering and other industries.

Material Carbon Steel
Seals Soft Seal,Metal to Metal
Valves Design API6D,API608
Pressure Range ANSI 150LB to 2500LB
End Connection BW,RF,RTJ
Operate Lever,Gear,Actuator
Testing&Inspection API6D,API598
