UHB-ZK65/50-32 Fluoroplastic liner slurry mortar centrifugal pump Description

Slurry pumps are a general term for industrial pumps used to transport media containing solid particles, encompassing various types such as centrifugal slurry pumps, screw pumps, and vortex pumps.

They are widely applied in fields like mining, chemical industry, papermaking, and environmental protection

Centrifugal slurry pump: The motor drives the impeller to rotate at high speed, and the slurry gains energy under the action of centrifugal force, being thrown out by the impeller and discharged through the pump casing, suitable for conveying medium and low concentration slurries.

Structural features: The wide flow channel prevents blockage, and the wear-resistant materials such as high-chromium alloy, rubber, or ceramics are used for the flow-passing components.

Common types: horizontal slurry pump, vertical submerged pump, submersible slurry pump.

2 - Positive displacement slurry pump: It conveys slurry through sealed chambers, with flow rate directly proportional to rotational speed, suitable for high-concentration and high-viscosity media.

Screw Pump: Single-screw design, delivers smooth and pulse-free flow, capable of pumping high-viscosity slurry with concentrations ranging from 40% to 80%.

Plunger pump/diaphragm pump: Suitable for ultra-high pressure or leak-free conditions.

3 - Vortex slurry pump: The rotating impeller generates a vortex, causing solid particles to flow toward the channel center, reducing wear.

It has lower efficiency but excellent wear resistance.

Slurry pump: a general term encompassing all types of pumps designed to transport slurries containing solid particles.

Selection Parameters:

Flow range: 9-2600 m³/h (varies significantly across different models).

Head range: 12-80 m.

Medium temperature: -20°C to 120°C (depending on the material).

Solid content: Generally below 6%-15%, with high-concentration dedicated pumps capable of exceeding 40%.

Flow passage components materials: high chromium alloy, rubber lining, stainless steel, ultra-high molecular weight polyethylene, etc.

Slurry pump: Focuses on conveying highly abrasive media such as ore sand and coal slag in industries like mining and power.

Slurry Pump: Focused on transporting mud mixtures in the construction and dredging industries

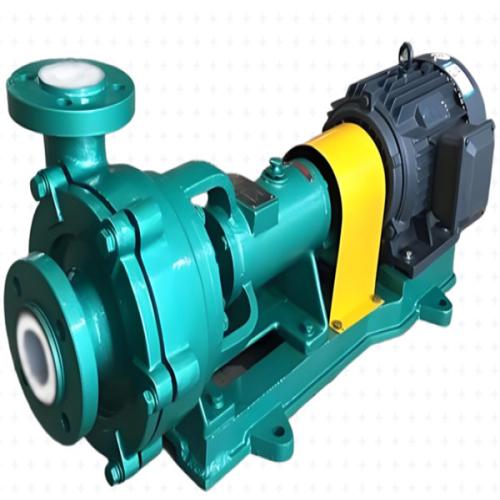

UHB-ZK corrosion-resistant and mortar slurry pump is a cantilever single-stage single suction centrifugal pump, and its flow components are made of steel lined ultra-high molecular weight polyethylene.

This pump has the characteristics of corrosion resistance and wear resistance, and can adapt to various working conditions.

It is used to transport acid, alkaline clear liquid or slurry, corrosive slurry, various dilute acids and sewage media.

The applicable media include sulfuric acid with a concentration of less than 80%, nitric acid with a concentration of less than 50%, hydrochloric acid with various concentrations, and liquid alkali.

The temperature range of this pump is -20 ℃ to 105 ℃ (using modified material U00), the flow range is 5-2600m ³/h, and the head is within 80m.

Its semi open impeller design enhances the flow passage and can transport media with a solid content not exceeding 40%.

This series of products is widely used in industries such as sulfuric acid phosphate fertilizer, non-ferrous metal smelting, chemical industry, water treatment, steel and wet desulfurization
