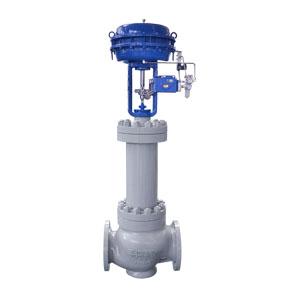

LN82W Series DN15 Bellows Globe Control Valve

LN82W Series DN15 Bellows Globe Control Valve
  • Model Number: LN82W
  • Brand Name: SUPCON
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 4000 sets per month /month
  • Payment: 100% prepayment, or 50% prepayment and 50% before shipment.
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

LN82W LN82W Series DN15 Bellows Globe Control Valve Description

LN82W Series DN15 Bellows Globe Control Valve

LN81W / 82 series bellows single-seat control valve, based on LN81/82 series valve single-seat non pressure balance structure on the basis of increase the bellows seal structure, compression elastic stainless steel bellows in bearing parts connected to the valve stem in together, and packing of double seal, eliminate medium leakage hidden trouble. Suitable for differential pressure is highly toxic, flammable, explosive, volatile and the adjustment of the rare and precious metal medium.

The company is specialized in producing bellows single-seat control valve, Double seated valve, Cryogenic control valve and soon

TECHNICAL PARAMETERS

Nominal Size

DN15 ~ DN300

Pressure Rating

PN16/25/40/63/100;CL150(PN20)/300(PN50)/600(PN110)

Operateing Temperature

-46℃~ 350℃

Characteristics

Equal percentage, linear, quickly open

Rangeability

30:1、50:1、 100:1

Seat Leakage Class

ANSI B16.104: IV、V、VI

Body Material

WCB/WCC/LCB/LCC;WC6/WC9;CF8/CF8M;4A/5A etc.

Trim Material

630/316/316+ST/316nitriding/316+Ni60/316+WC etc.

Seal Material

PTFE+ graphite v-shaped packing, flexible graphite ring packing, graphite +PTFE braided packing etc.
