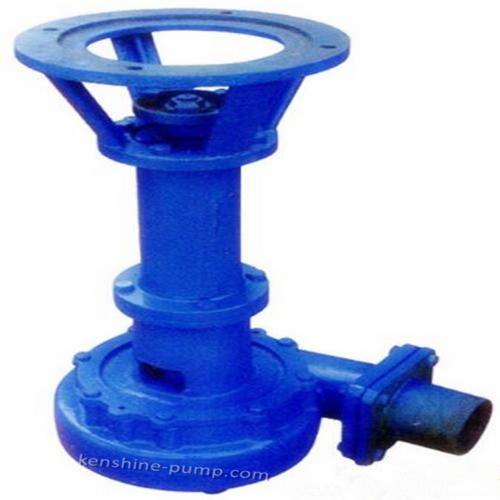

LWB Vortex not clogging sewage pump

LWB Vortex not clogging sewage pump
  • Model Number: 100LWB-10
  • Brand Name: kenshine-pump
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1SET
  • Supply Capacity: 1000Sets per month/month
  • Payment: T/T in advance
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

100LWB-10 LWB Vortex not clogging sewage pump Description

LWB vortex pump is a new type sewage pump with low wear, no winding and no clogging. The pump design is unique. The impeller is not located in the center of the pump chamber. The conveyed medium does not go through the impeller, directly from the pump chamber to obtain energy, rely on the impeller rotation induction eddy current and pumping effect and finally is discharged from the pump output. It is a new transportation method to carry out hydraulic transportation of slurry fluid containing solid particles through pipelines.

It has low cost, less environmental pollution and high economic benefit and convenience  maintenance, not clogging, long service life, high efficiency etc as  the transmission pump.


LWB Vortex pump is widely in industrial and mining enterprises, agriculture, urban and rural construction drainage.


The pump can also be installed on the floating body for surface operations, such as river excavation, dredging, dredging of fish ponds and shrimp ponds, excavation of caisson, embankment and so on.

LWB vortex pump is suitable to transport solid liquid containing large particles without blocking. Transporting non-winding liquid containing fiber and suspended substance; Transmission of gas-containing liquid without interruption and other characteristics.


The pump is especially suitable for conveying solid-liquid mixture liquid, medium temperature is not more than 50 degree Celsius and solid particle size is 80 percent of the outlet diameter and weight concentration is 60 percent.


So LWB vortex pump is widely used in industrial and mining enterprises, agriculture, construction, urban sewage and other transport pulp feed, pulp, ore, feces, mud sand, garbage and sewage with various impurities liquid. The pump has simple structure, reliable operation, small vibration, low noise and easy to use


Flow rate 5-50m3/h
Head 5-12m
pump material cast iron or stainless steel
