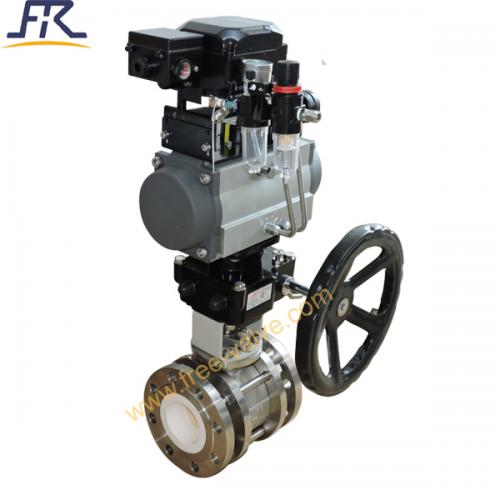

Pneumatic Ceramic Lined V Port Control Ball Valve

Pneumatic Ceramic Lined V Port Control Ball Valve
  • Model Number: FRQV641TC
  • Brand Name: FREE-VALVE
  • Place of Origin: Henan, China
  • Minimum Order Quantity: 2 Sets
  • Supply Capacity: 200 Sets /Month/month
  • Payment: T/T,L/C
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

FRQV641TC Pneumatic Ceramic Lined V Port Control Ball Valve Description

FREE-VALVE brand pneumatic Ceramic Lined V Port Control Ball Valves are designed with engineering ceramics as a control valve . The engineering ceramics internal parts provide excellent wear resistance and corrosive resistance , the ceramic ball valves are widely used as an open and close function as well as a throttling control tasks in corrosive medium with abrasive solids content. They are the best choice for your abrasive and corrosive working condition on site .



Features:

1.The hardness of the ceramic material can be higher than HRC80.

2.Engineering internal parts of ceramic ball valve provide superior protection from corrosive and abrasive medium.

3.Pneumatic operated save the cost of man power .

4.The valve has a floating ball design, the ball is floating, the ball has a defined clearance and is pressed against the downstream seat under the differential pressure to achieve sealing.

5. V port type ball valves have a good controlling performance and precision .



Technical Specification



Flange Standards ASME B16.5,GB/T9113

Nominal Pressure 1.0MPa,Class150

Size Range :DN50~DN 200, NPS2 ~NPS8

Connection type:Flange

Control performance : Equal percentage

Working Temperature ≤200℃

Operating Type:Pneumatic

Sealing surface material:Engineering ceramic

Ball material: Zirconia ceramic

Pressure test GB/T13927, API598

Face to Face GB/T12221, ASME B16.10



Application



FREE-VALVE brand Pneumatic Ceramic Ball Valves are suitable for Silicon Powder, Alumina Powder, Dry Coal Powder, Limestone Slurry, Gypsum Slurry, Plaster, Fly Ash, Mining Ore, Coal Powder Injection, Metallurgical dust, Thermal Power plant FGD , LiCoO2  powder equipment.




Body material CF3M
Sealing Material Ceramic Engineer
Pressure Class PN10
Operating type Pneumatic
