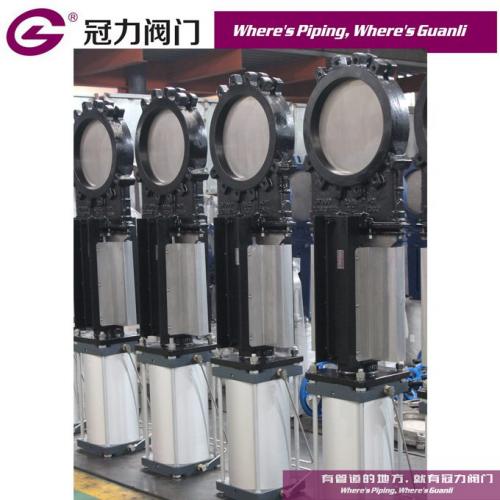

Pneumatic type knife gate valve

Pneumatic type knife gate valve
  • Model Number: GKU01
  • Brand Name: Guanli Valve
  • Place of Origin: Zhejiang, China
  • Minimum Order Quantity: 1Set
  • Supply Capacity: 10000 Sets/month
  • Payment: Visa, T/T, L/C, Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

GKU01 Pneumatic type knife gate valve Description

The GKU01 knife gate is a uni-directional wafer valve designed for general industrial service applications. The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as:
Pulp and Paper
Power plants
Wastewater treatment plants
Chemical plants
Food and Beverage
Bulk handling
Mining
etc.

Sizes:DN 50 to DN 1800,accept customized design.

Working pressure:
DN 50 to DN 250: 10 kg/cm2
DN 300 to DN 400: 6 kg/cm2
DN 450: 5 kg/cm2
DN 500 to DN 600: 4 kg/cm2
DN 700 to DN 1200: 2 kg/cm2
Accept full pressure for special working pressure

Standard flange connection:
EN1092 PN10 and ANSI B16.5 (class 150),JIS 10K,AS2129,AS4087
Note: other flange connections (on request):

Material Ductile iron/CF8M/CF8/SS2205/SS2507
Color Black,green,blue,red,etc
Standard EN1092,AS2129,CLASS 150
Knife SS304/SS316/2205
Operation Pneumatic actuator in double acting
