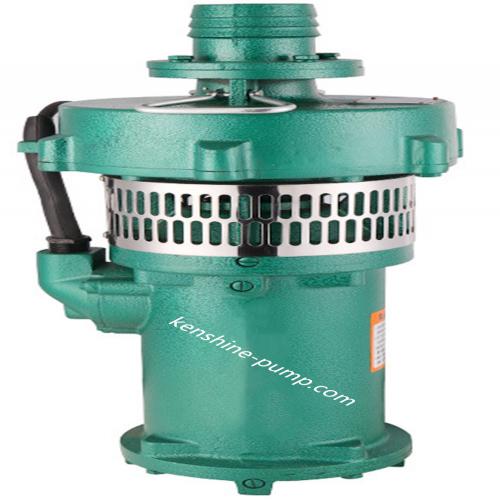

QY submersible centrifugal water pump with oil filled motor

QY submersible centrifugal water pump with oil filled motor
  • Model Number: QY12.5-50-4
  • Brand Name: kenshine-pump.com
  • Place of Origin: Shanghai, China
  • Minimum Order Quantity: 1set
  • Supply Capacity: 1000sets per month/month
  • Payment: T/T in advance
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

QY12.5-50-4 QY submersible centrifugal water pump with oil filled motor Description

QY submersible centrifugal pump with oil filled motor:

QY type oil-filled submersible pump is the electric drainage and irrigation equipment combining water pump and three-phase asynchronous motor.  The pump is up onto the equipment and motor is down.  The whole inner installed mechanical seal with O oil rubber seal ring is between the pump and motor. QY type oil-filled electric motor submersible pump is used to convey the fresh water or other liquids similar to water.

QY oil-filled submerged pump is with reliable waterproof sealing performance, small volume, light weight, no need of pump room, no need of irrigation water, easy to use, maintenance and management.

Range of application

1. Drainage, well irrigation and sprinkling irrigation in farmland gardens;

2, underground water, water tower to send water

3. Drainage and flood prevention

4. Ship bilge drainage;

5. Urban construction, industrial and mining water supply and drainage;

working conditions

The submersible pump shall not be submerged to a depth of more than 5m;

The water temperature shall not exceed 40℃;

The concentration of sand in water or the volume ratio of solid particles in insoluble water does not exceed 0.1%

The solid grain diameter shall not be greater than 0.2mm;

No corrosion liquid, PH value of water is 6.5-8;

Medium for general room temperature water: well water, river water, lake water


flow rate 5-200m3/h
head 6-120M
pump material cast iron or stainless steel
