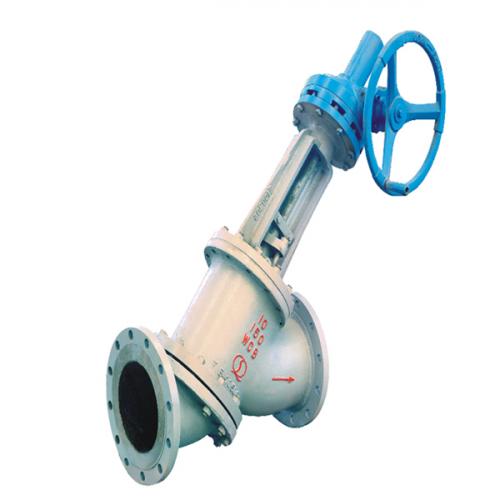

slurry valve

slurry valve
  • Model Number: 0003
  • Brand Name: QUANSHUN
  • Place of Origin: Henan, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 1000 sets/month
  • Payment: T/T,L/C
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

0003 slurry valve Description

Featuring abrasion resistance,high pressure resistance,erosion resistance and anti-scaling performance,the slurry valve is specially offered for controlling or shutting off the slurry.The slurry valves are widely used at alumina,steel ,metallurgy and mining industry.

Features

1.The valve body of y type globe valve for alumina slurry control is consisted of two pieces. The left and right valve bodies are provided in geometric design. Besides the solidworks software for three -dimensional design ,the ANSYS software is also applied for flow field analysis.

2.The valve seat of y type slurry valve is separated from the valve body.The valve seat is installed between the two valve body ,so the valve seat can be replaced easily .

3.To ensure the valve stem has straight line motions ,there is an anti-rotation device provided for the valve  stem of the y type slurry valve .

4.Low pressure drop .

5.The range of product is anti-scaling,which are widely use in alumina process.

Technical Specifications

Size:2”~14” DN50~DN350

Pressure :Class 150~Class 600   PN1.0~PN16

Body material:WCB,  CF8, CF8M, CF3, CF3M etc

Connection type :Flange ,weld

Driving method:Manual ,Electric,Pneumatic

Applications

Alumina industry

Polymer Industry

Chemical industry

Steel industry

Nonferrous metal industry
