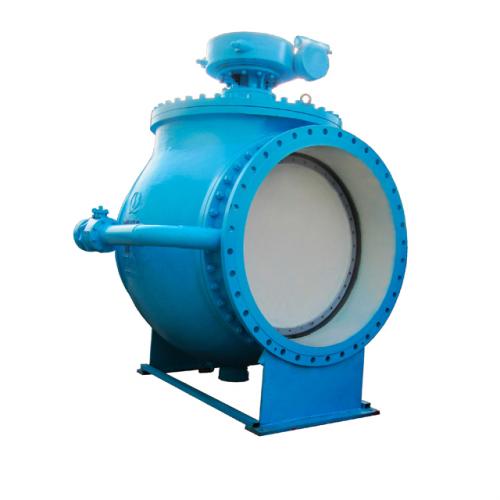

top entry segment ball valve

top entry segment ball valve
  • Model Number: 00015
  • Brand Name: QUANSHUN
  • Place of Origin: Henan, China
  • Minimum Order Quantity: 1 set
  • Supply Capacity: 1000 sets/month
  • Payment: L/C,T/T
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

00015 top entry segment ball valve Description

On the base of side entry  segment ball valve, top entry segment ball valves  was developed .They are widely used in the water system which including tiny solid particle medium,such as the South-North Water Diversion Project .Features1 Full bore design , small pressure loss ;2.Lower opening torque ,which is less than half of the same size ball valve ;3.It is not required removing from the pipe when repairing, only valve bonnet are needed to open ;4.Large size can be designed ,max up to DN2000;5.With anti- scaling function.Technical SpecificationsSize :4"-56"  DN100~DN1400Pressure :Class 150  PN1.0~PN4.0MPa  Body material:WCB Sealing material:Hard alloy or special treatment by spraying .Connect method :Flange,weldDriving method:Worm gear ,pneumatic ,electric etc ApplicationsWater industryMunicipal Engineering
